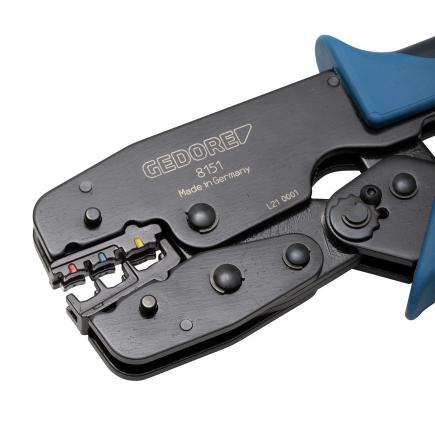

Обжимные клещи CRIMPMAX-FLEX PROFESSIONAL Gedore 3416445

Features

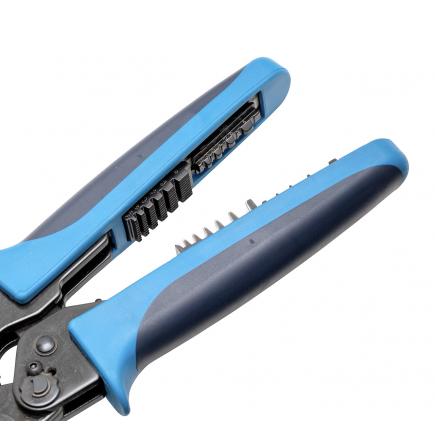

• Integrated storage system in the tool handle for 2 additional sets of crimping profiles
• Flexible tooling system consisting of a basic tool and sets of crimping profiles that can be changed quickly and without tools
• Up to 4 different shrink profiles are possible with only one die set
• For crimping cables with conductor cross sections up to 16 mm²
• Thanks to the flexible changeover system
• Ergonomic soft handles with non-slip protection - Unlockable
• forced locking ensures full contraction
• High-precision manufacturing and optimally set at the factory, therefore no further adjustment of the shrinkage force is required
• Made of high-quality special steel, loaded parts specially tempered

Technical data

• Conductor end sleeves 0.14-10 mm², AWG 26-8
• Insulated DIN cable lugs 0.5-6 mm², AWG 20-10
• Non-insulated cable lugs 0.1-10 mm², AWG 26-8
• Overall length 220 mm
• Overall width 80 mm
• Net weight 0.51 kg
