ADQ800 Series Artesyn 800 Watts 1/4 brick

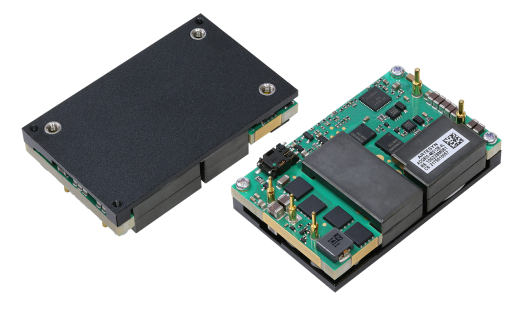

ADQ800 series quarter-brick (ADQ800-48S12B-4L) isolated DC-DC converter produces a single fully regulated 11.8 V output. Rated at 800 watts, this converter can deliver up to 70 amps output current and has no minimum load requirement. It has an input voltage range of 40 to 60 V and is primarily designed for use with standard 48 V supplies in computing and server applications, as well as regulated 48V supplies in communications equipment.

Особенности

• Delivering up to 70A output
• Ultra-high efficiency 96.0% typ. at 50% load
• Input range: 40V ~ 60V
• Parallel and Droop current sharing
• Startup Pre-bias:0% Vout ~95% Vout
• Excellent thermal performance
• No minimum load requirement
• RoHS 6 compliant
• Remote control function
• Input undervoltage lockout
• Input overvoltage lockout
• Output overcurrent protection
• Output overvoltage protection
• Overtemperature protection
• Industry standard quarter-brick outline
• Baseplated
• Pin length option: 4.6mm

Технические характеристики

• Total Max Power:
  800 W
• Total Max Current:
  70 A
• Input Voltage:
  40 V to 60 V
• Output Voltage:
  11.3 V to 12.3 V
• Outputs:
  Single
• Size (L x W x H):
  2.300" x 1.450" x 0.530"
• Warranty:
  2 years
• Operating Temperature:
  -40 degC to +85 degC
