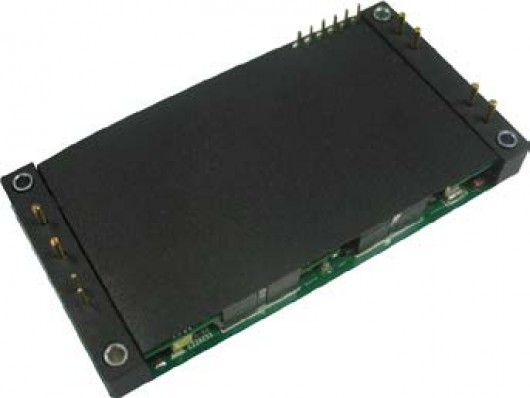

AGF700 Series Artesyn 700 Watt Isolated DC-DC Converters for RF Applications

The AGF700 series isolated DC-DC converter is designed for the type of RF power amplifiers used in micro and macro cell, NodeB/eNodeB and remote radio head (RRH) telecommunications applications.

Особенности

• 2:1 Wide input range
• Extra wide trim range
• 15V - 33V for 30Vo
• Optimised for High density, small space applications
• Low ripple and noise
• Fixed switching frequency
• Super High efficiency
• High capacitive load capability
• Basic insulation system
• Aluminium Substrate
• Functions
• Power good
• Auxiliary power rail
• Current share

Технические характеристики

• Total Max Power:
  700 W
• Total Max Current:
  23.4 A
• Input Voltage:
  36 V to 75 V
• Output Voltage:
  30 V to 30 V
• Outputs:
  Single
• Size (L x W x H):
  5.598" x 2.402" x 0.500"
• Warranty:
  2 years
• Operating Temperature:
  -40°C to +85°C
