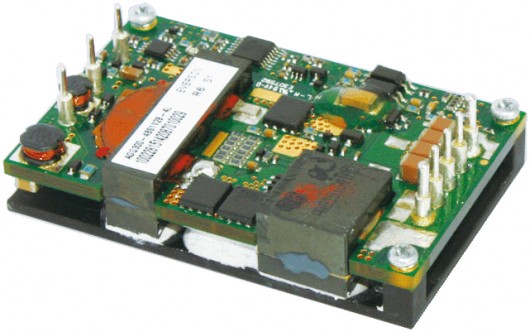

AGQ300-48S1V2 Series Artesyn 72 Watt Quarter-Brick Isolated DC-DC Converters

  • Цена - по запросу

  • Производитель: Artesyn
  • Модель: AGQ300-48S1V2 Series
  • Наличие: Нет в наличии

The AGQ300-48S1V2 series quarter-brick isolated DC-DC converter produces a single fully regulated output voltage of 1.2 Vdc. Rated at 72 watts, the converter can deliver up to 60 amps output current. It has a wide 2:1 input range of 36 to 75 Vdc and is designed primarily for use with standard 48 V telecommunications equipment supplies.

Особенности

  • Industry standard quarter brick
  • Basic isolation
  • Ultra high efficiency
  • Improved thermal performance
  • High power density
  • Low output noise
  • Industry standard pinout
  • 2:1 wide input voltage of 36V~75V
  • CNT function
  • Remote sense
  • Trim function
  • RoHS compliant

Технические характеристики

  • Total Max Power:
    72 W
  • Total Max Current:
    60 A
  • Input Voltage:
    36 V to 75 V
  • Output Voltage:
    1.2 V to 1.2 V
  • Outputs:
    Single
  • Size (L x W x H):
    2.280" x 1.450" x 0.400"
  • Warranty:
    2 years
  • Operating Temperature:
    -40°C to +85°C

Electrical Specifications

  • Input
  • Output
  • Logic Control
  • Isolation
  • input voltage: 46VDC to 75VDC
  • output voltage: 1.2VDC
  • output current: 60A
  • Enable: Positive or Negative Enable.
  • isolation: basic insulation
