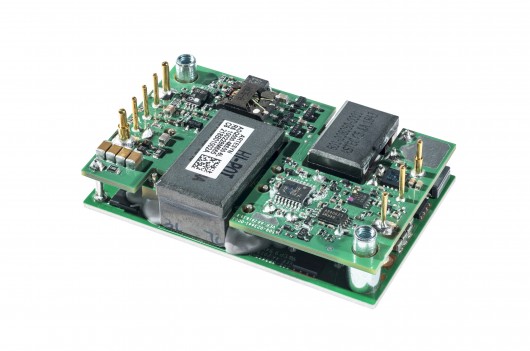

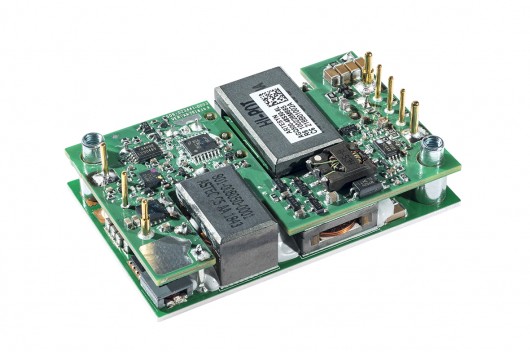

AGQ500-48S28-6L (500W, 28Vout 1/4 brick) Artesyn 1/4 Brick

The AGQ500 series Quarter-brick isolated DC-DC converters provides a single, regulated and low noise output. The AGQ500-48S50 has a 50V/10A output. It has a Telecom input range of 36 to 75 Vdc and is designed primarily for use with standard 48 V telecommunications equipment supplies. The converter’s main application area is in low power and remote radio head (RRH) telecommunications applications.

Технические характеристики

• Total Max Power:
  500 W
• Total Max Current:
  18 A
• Input Voltage:
  36 V to 75 V
• Output Voltage:
  14 V to 57 V
• Outputs:
  Single
• Size (L x W x H):
  2.300" x 1.450" x 0.500"
• Warranty:
  2 years
• Operating Temperature:
  -40degC to 85 degC
