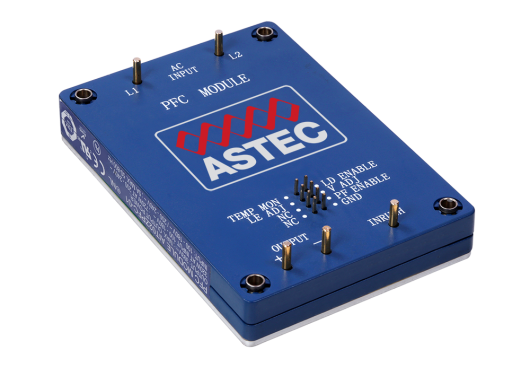

AIT00ZPFC-01NL Artesyn Three Quarter Brick PFC Modules

The AIT00ZPFC series of three-quarter-brick power factor correction modules accept a 100–122 Vac input and present a unity power factor. They accommodate AC supply frequencies of 50 Hz, 60 Hz or 360–800 Hz, and a DC input version is also available. Rated at 150 watts, the modules have a high conversion efficiency of 91% and provide a typical output voltage of 393 Vdc.

Особенности

• Unity power factor
• High efficiency - up to 92%
• Civil / Aviation supply frequency range (50 / 60 / 360 - 800 Hz)
• Up to 150W output power
• Negative enable function
• RTCA-DO 160 compliant
• IEC1000-3-2 compliance at 50 Hz to 800 Hz input
• 100°C baseplate operating temperature
• DC Input option
• Enable output to control DC-DC Converter
• Internal active switch bypassing external inrush current components

Технические характеристики

• Total Max Power:
  150 W
• Total Max Current:
  0.3 A
• Input Voltage:
  100 V to 122 V
• Output Voltage:
  393 V to 393 V
• Outputs:
  Single
• Size (L x W x H):
  3.500" x 2.400" x 0.550"
• Warranty:
  1 year
• Operating Temperature:
  -20°C to +100°C
