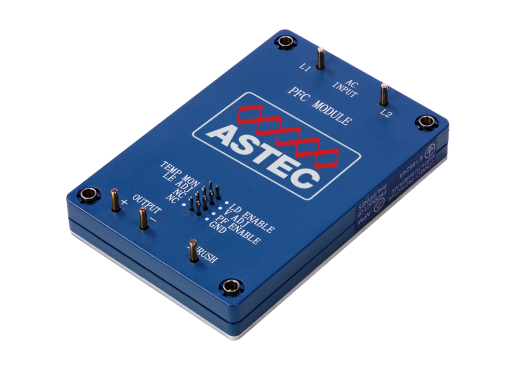

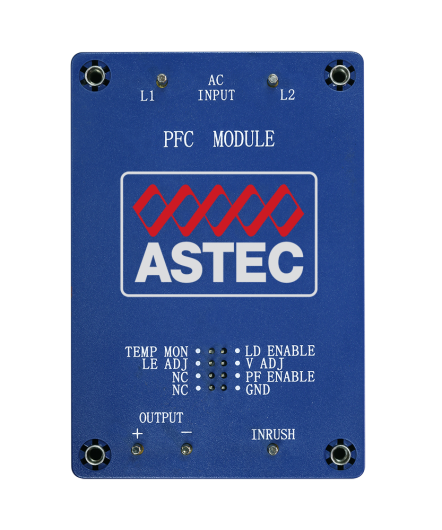

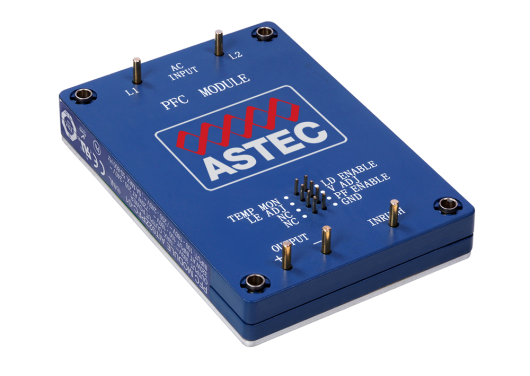

AIT02ZPFC-01NL Artesyn Three Quarter Brick PFC Modules

The AIT02ZPFC series three-quarter-brick power factor correction module accepts a wide 85–264 Vac input and presents a unity power factor. It accommodates AC supply frequencies of 50 Hz, 60 Hz or 360–800 Hz. Rated at 720 watts, the module offers a conversion efficiency of up to 93% and provides a typical output voltage of 393 Vdc.

Особенности

• Unity power factor
• High efficiency - up to 93%
• Universal input voltage and frequency range
• Negative enable function
• IEC1000-3-2 compliance at 50Hz and 800Hz input
• Enable output to control DCDC Converter
• Internal active switch bypassing external inrush current
• Up to 720 W output power
• TRCA-DO-160D harmonic compliant at 115Vac input full load
• 100°C baseplate operating temperature

Технические характеристики

• Total Max Power:
  720 W
• Total Max Current:
  2.1 A
• Input Voltage:
  85 V to 264 V
• Output Voltage:
  393 V to 393 V
• Outputs:
  Single
• Size (L x W x H):
  3.500" x 2.400" x 0.550"
• Warranty:
  1 year
• Operating Temperature:
  -20°C to +100°C
