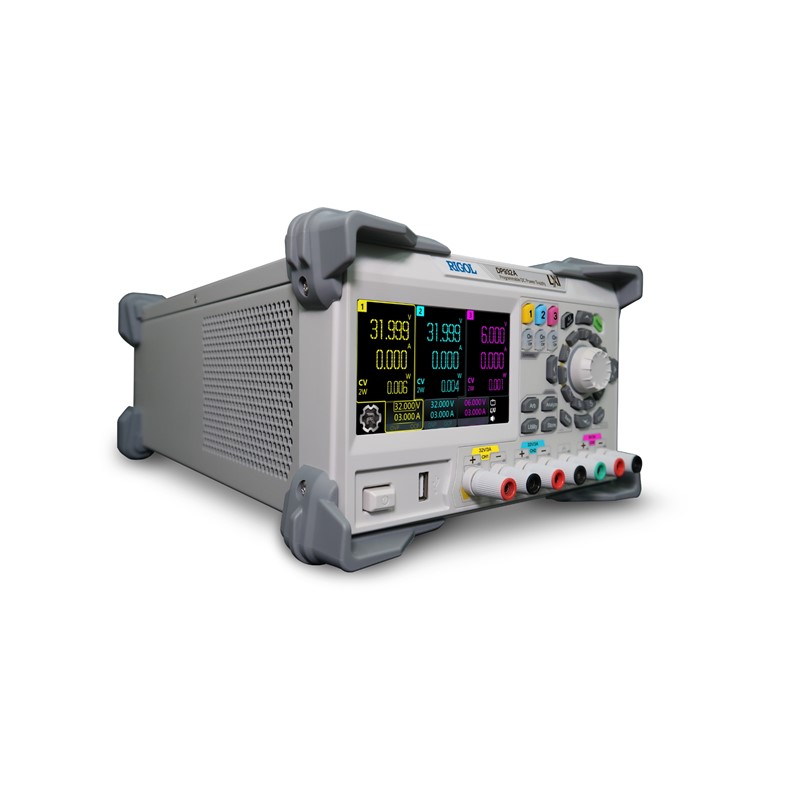

Источник питания DC Rigol DP932U

• 3 electrically isolated independent channels with a maximum total power of up to 210 W
• Voltage / Current CH1: 0 - +32 V / 0 - 3 A
• Voltage / Current CH2: 0 - +32 V / 0 - 3 A
• Voltage / Current CH3: 0 - +6 V / 0 - 3 A

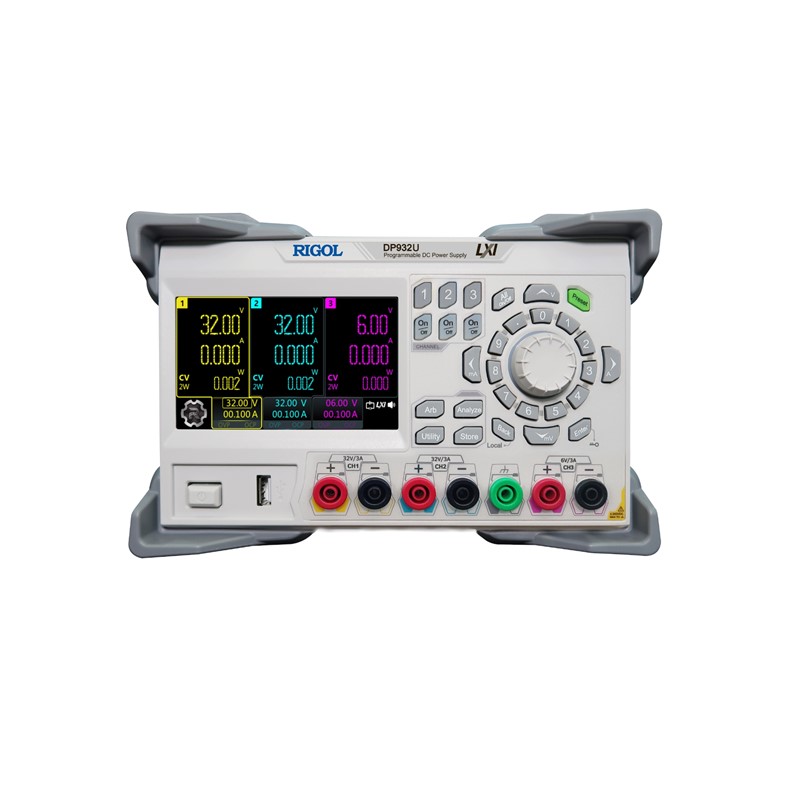

• 4.3-inch LCD color touch screen
• Front-panel safety sockets available on some models
• Internal series/parallel connections for CH1 and CH2
• Excellent programming/readback accuracy
• Transient response time <50 μs
• Low output ripple and noise <350 μVrms/2 mVpp
• Command processing time <10 ms
• Three rack-units (3U), 1/2-rack form factor
• PC control
• Timing output, data logging and analysis
• A maximum of 512 arbitrary points with dwell time down to 100 ms; various built-in basic waveforms
• Over voltage, over current, and over temperature protection

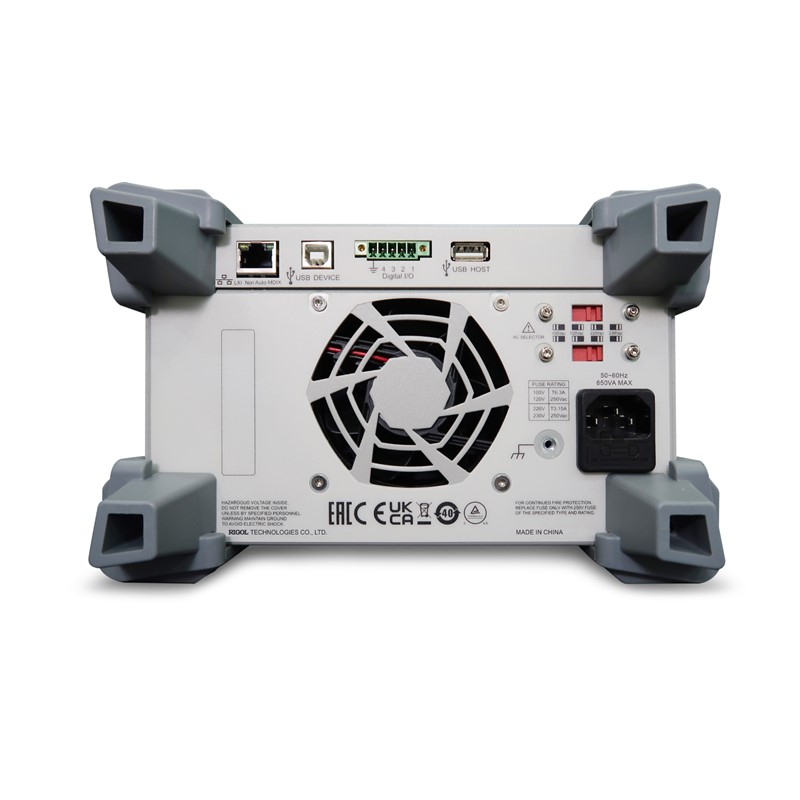

• Various interfaces available: USB, LAN, and Digital I/O

Education Model: schools, universities and educational institutions can apply for a special price for €369.00 (excl. VAT)
