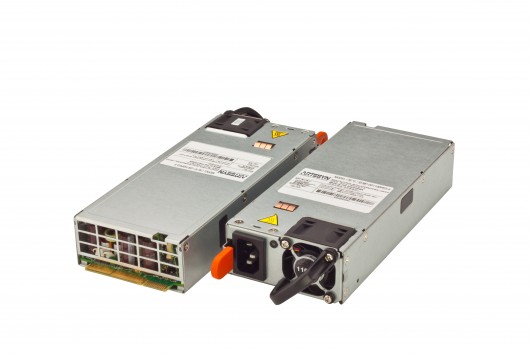

DS1100PED-3 Series Artesyn 1100 Watt Front End AC-DC Power Supplies

The DS1100PED-3 series bulk front end AC-DC power supply accepts a wide range 90–264 Vac input and provides a main 12 V output plus a 12 V standby output. Rated at 1,100 watts, it is an 80 Plus Platinum power supply with a peak conversion efficiency of 94%. Housed in a 1U high rack-mounting enclosure with a short form factor that frees up system space, the DS1100PED-3 has a very high power density of 24 watts per cubic inch. This series comes in two airflow versions – dc-connector to ac-connector and vice versa.

Особенности

• 1100W output power
• N+N Redundant
• Internal OR'ing
• 12.0 V housekeeping
• High efficiency (94% @ 230 VAC) 50% load
• Variable speed smart fan
• EMI Class A
• Low fan noise feauter at standby mode
• High accuracy reporting functions
• EN61000 Immunity

Технические характеристики

• Total Max Power:
  1,100 W
• Total Max Current:
  91.7 A
• Input Voltage:
  90 V to 264 V
• Output Voltage:
  N/A
• Outputs:

• Size (L x W x H):
  7.736" x 3.400" x 1.574"
• Warranty:
  2 years
• Operating Temperature:
  +10°C to +50°C
