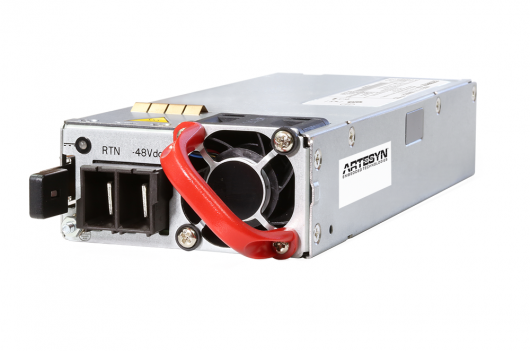

DS1100SDC Series Artesyn 12V 1100 Watt Power Supplies (48 V DC Input)

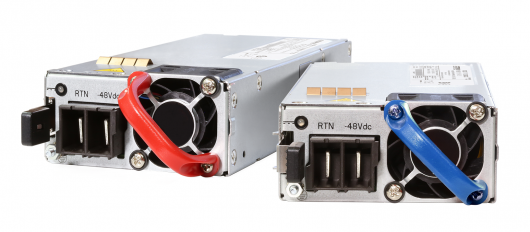

The DS1100SDC-3 series bulk front end DC-DC power supply accepts a wide range -36 to –72 VDC input and provides a main 12 V output plus a 12 V standby output. It is rated at 1,100 watts. Housed in a 1U high rack-mounting enclosure with a short form factor that frees up system space, the DS1100SDC-3 has a very high power density of 24 watts per cubic inch. This series comes in two airflow versions – dc-connector to ac-connector and vice versa. The series is also in the same form factor and has the same output configuration as the DS1100PED-3.

Особенности

• 1100 W output power
• High power and short form factor
• 1U power supply
• High-density design: 24 W/in3
• Inrush current control
• N+1 or N+N redundant
• Active current sharing
• Full digital control
• PMBus compliant
• Compatible with Artesyn’s
• Universal PMBus GUI
• Reverse airflow available
• Two-year warranty

Технические характеристики

• Total Max Power:
  1,100 W
• Total Max Current:
  91.7 A
• Input Voltage:
  -72 V to -36 V
• Output Voltage:
  N/A
• Outputs:

• Size (L x W x H):
  7.740" x 3.400" x 1.580"
• Warranty:
  2 years
• Operating Temperature:
  0 to 50°C
