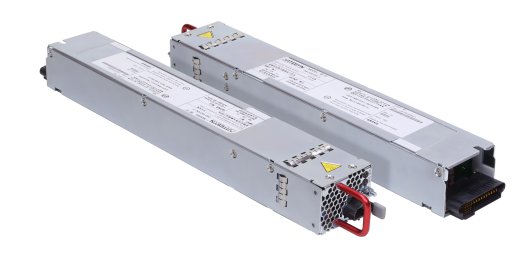

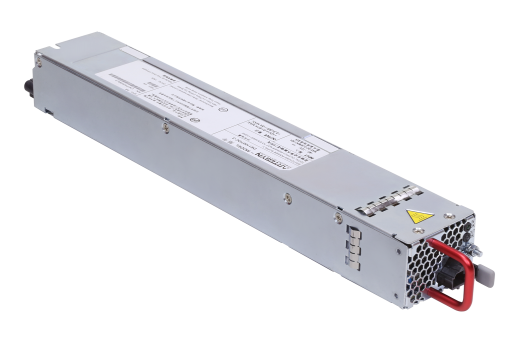

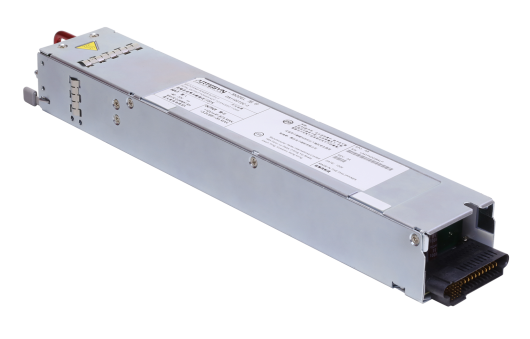

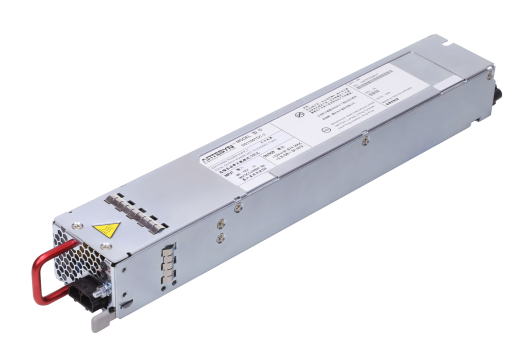

DS1100TDC Series Artesyn 1100 Watt Front End DC-DC Power Supplies

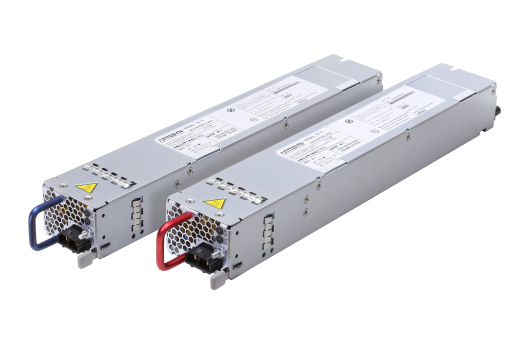

The DS1100TDC series bulk front end DC-DC power supply accepts a wide range -40 to -72 Vdc input and provides a main 12 V output plus a 3.3 V standby output. Housed in an industry standard 1U x 2.1 inch rack-mounting package and able to deliver 1,100W, the power supply is ideal for space-constrained applications. This series comes in two airflow versions – output-connector to input-connector and vice versa.

Технические характеристики

• Total Max Power:
  1,100 W
• Total Max Current:
  91.7 A
• Input Voltage:
  -72 V to -40 V
• Output Voltage:
  N/A
• Outputs:

• Size (L x W x H):
  12.640" x 2.145" x 1.575"
• Warranty:
  2 years
• Operating Temperature:
  -5 to 50°C
