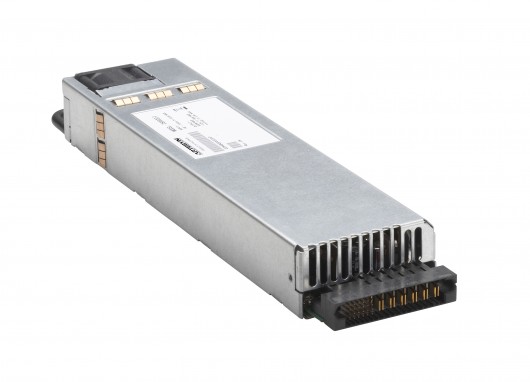

DS550-3 Artesyn 450–550 Watt Front End AC-DC Power Supplies

Цена - по запросу

Производитель: Artesyn
Модель: DS550-3
Наличие: Нет в наличии

Outputs
12 V @ 45 A

The DS450 and DS550 series bulk front end AC-DC power supplies accept a wide range 90–264 Vac input and provide a main 12 Vdc output, plus a 3.3 Vdc standby output. Rated at 450 watts and 550 watts respectively, the DS450 and DS550 have a typical full load conversion efficiency of 84%. Standard features include active current sharing, internal ORing FETs and an EEPROM for storing service data to facilitate efficient field replacement. An I2C communication interface is provided for the FRU EEPROM data.

Особенности

1U x 2U Form Factor
10.3 W/ cu-in
No Min Load Required
Hot Plug Operation
N+1 Redundant
Active Current Sharing
I2C communication Bus
Status LED's
Smart Fan Speed Control
Full Safety Approval

Технические характеристики

Total Max Power:
550 W
Total Max Current:
45 A
Input Voltage:
90 V to 264 V
Output Voltage:
12 V to 12 V
Outputs:
Single
Size (L x W x H):
11.050" x 3.070" x 1.570"
Warranty:
1 year
Operating Temperature:
-10°C to +50°C

Electrical Specifications

Input
Output
Other

Leakage Current: 1.4 mA @ 240 V
Efficiency: 80% Typ
Input Range: 90 - 264 VAC
EMI/RFI: Class A
Frequency: 47 - 63 Hz

Main Output: Varies By Model
Stand-by Output: Varies By Model

Power Density: 10.3 W/cu-in
Operating Temp: -10 °C to 50 °C
