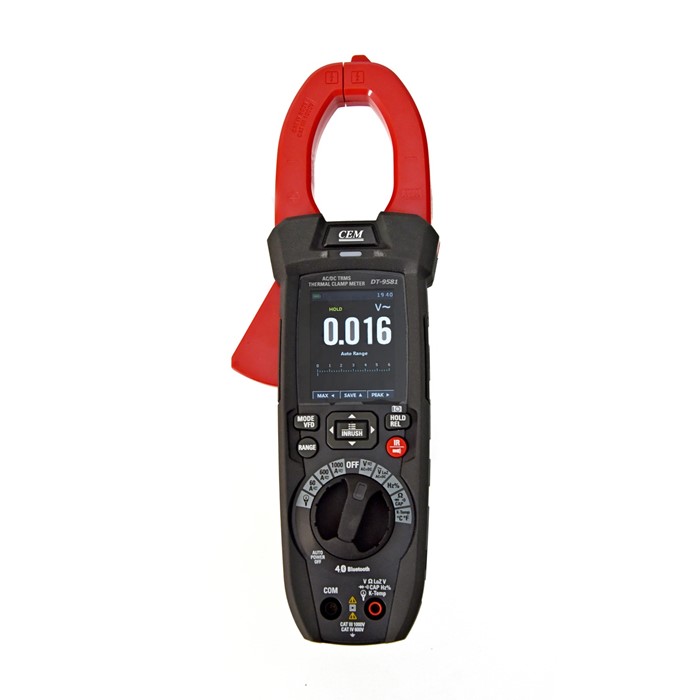

Клещи электроизмерительные CEM DT-9581

Профессиональные, промышленные токоизмерительные клещи TRMS с встроенным тепловизором оснащены цветным TFT ЖК-дисплеем и обеспечивает аналого-цифровое преобразование сигнала с высокой точностью и малым временем отклика.

Технические характеристики

Voltage DC (Maximum; Max. resolution; Best Accuracy): 1000V; 100mV; ±(0.5% + 5d)

Voltage AC (Maximum; Max. resolution; Best Accuracy): 1000V; 100mV; ±(1.2% + 5d)

Current DC (Maximum; Max. resolution; Best Accuracy): 1000A; 0.01A; ±(2% + 8d)

Current AC (Maximum; Max. resolution; Best Accuracy): 1000A; 0.01A; ±(2.5% + 5d)

Flexible A (Maximum; Max. resolution; Best Accuracy): 3000A; 0.01A; ±(3.0%+5d)

Resistance (Maximum; Max. resolution; Best Accuracy): 60MΩ; 0.1Ω; ±(0.8% + 5d)

Capacitance (Maximum; Max. resolution; Best Accuracy): 100mF; 0.01nF; ±(3.0% + 5d)

Frequency (Maximum; Max. resolution; Best Accuracy): 10MHz; 0.01Hz; ±(0.2% + 5d)

Inrush Current (Maximum; Max. resolution; Best Accuracy): 1000A; 1A

Temperature (Maximum; Max. resolution; Best Accuracy): 1000°C/1832°F; ±(1.5%+3°C)

Diode & Continuity: Yes

Interface: Bluetooth

Power Supply: Li-ion rechargeable battery

IR resolution: 80x80 pixels

Field of View (FOV): 21° x 21°

Thermal sensitivity/NETD: <0.08°C/80mK

Image frequency: 50Hz

Object temperature range: -20~260°C (-4~500°F)

Spectral range: 8-14 µm

Color palettes: Iron/Rainbow/Grey/Grey Inverted/Feather

Accuracy: ±2°C (±3.6°F) or ±2% of reading

Size (HxWxD): 95mm x 270mm x 42mm

Weight: 550g

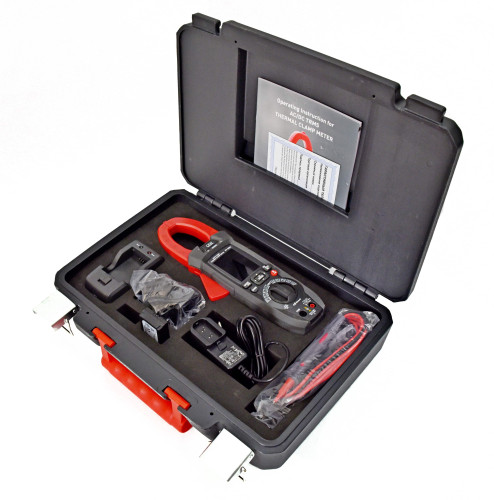

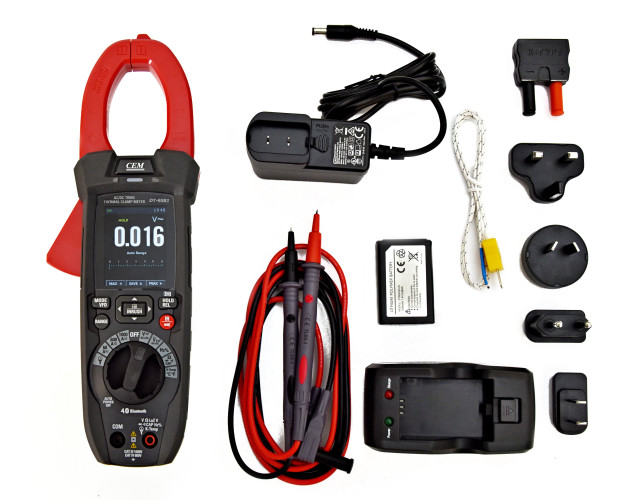

Accessories:

Test leads, gift box with carrying case, Temperature probe, Li-ion rechargeable battery, AC Charger
