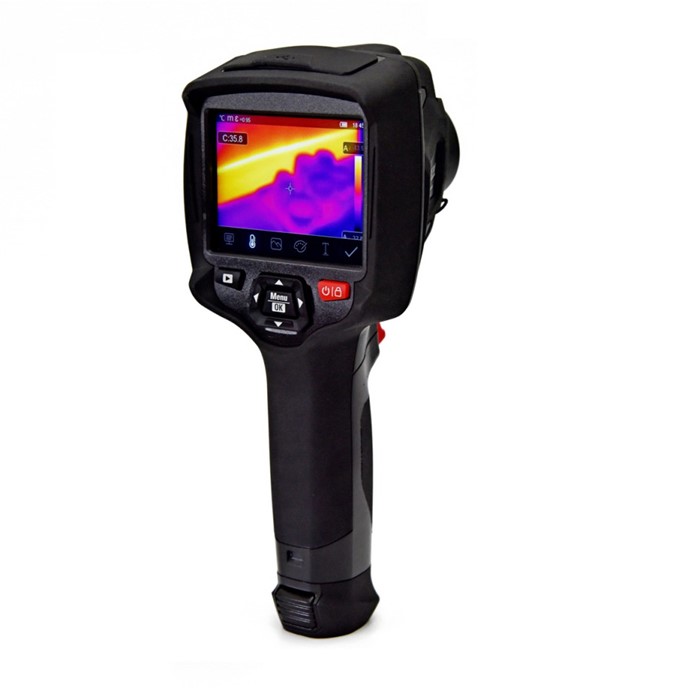

Тепловизор CEM DT-9887

Компактный тепловизор с разрешением: 384х288, фокусировка - ручная, увеличение 1-32х непрерывное, монитор 3,5 дюйма ЖК, сенсорный,чувствительность:0,05 ºC., погрешность ±2°C, передача через USB

Диапазон температур объекта от -20º до +650ºС; ИК-разрешение 384х288; Поле обзора (FOV) 41,3х31,1; Дисплей 3,5" 640х480; Wi-Fi; Видеозапись данных; Фокусировка - ручная; Сенсорный экран; Хранение информации 8Гб.

Imaging and optical data

IR resolution: Focal plane array (FPA), uncooled microbolometer, 384x288

Field of View (FOV): 41.5°x31.1°

Spatial resolution (IFOV): 1.89mrad

Thermal sensivity/NETD: < 0.05°C @ +30°C (+86°F) / 50 mK

Image frequency: 50Hz

Focus: Manual

Image presentation

Display: 3.5" 640x480 touch screen

Image modes: IR image, visual image, picture in picture, AUF

Color palettes: IRON, Rainbow, Grey, Grey Inverted, Brown, Blue-red, hot-cold, Feather

Measurement

Object temperature range: Low range: –20°C~+150°C (–4°F to +302°F); High range: 0°C to +650°C (+32°F to +1202°F)

Accuracy: ±2°C (±3.6°F) or ±2% of reading

Set-up

Set-up commands: Local adaptation of units, language, date and time formats, information of camera

Language selection: English, Chinese, French, German, Spanish, Japanese, Korean, Portuguese, Italian

Storage of videos/images

Storage media: 4Gbytes eMMC or 8GB SD card

Video storage format: Standard MPEG-4, 640x480@30fps, on memory card > 60 minutes

Digital camera

Built-in visible light digital camera: 2M Pixels

Data communication interfaces

USB interfaces USB-micro, data transform between camera and PC, Remote control, live video

Wi-Fi connectivity: Wi-Fi connectivity allows to send images and data to mobile devices remote control, live video

Power system

Battery: Lithium polymer battery, 4 hours operating time

Input voltage: DC 5V

Charging system: In camera (AC adapter)

Size(HxWxD): 228mm x 100mm x 98mm

Weight: 520g

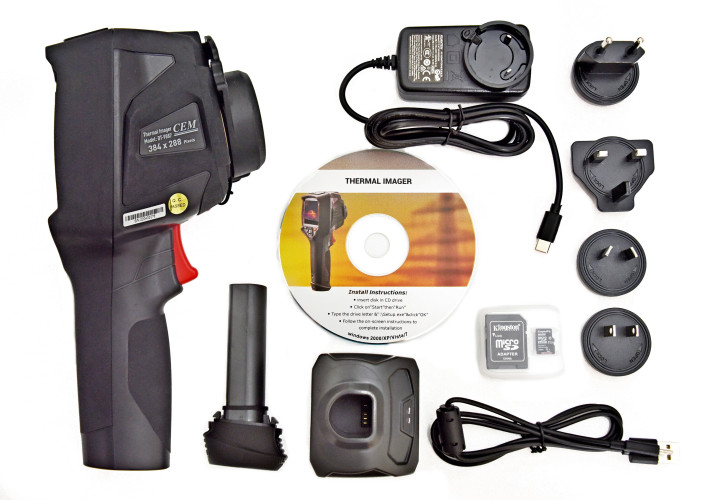

Accessories:

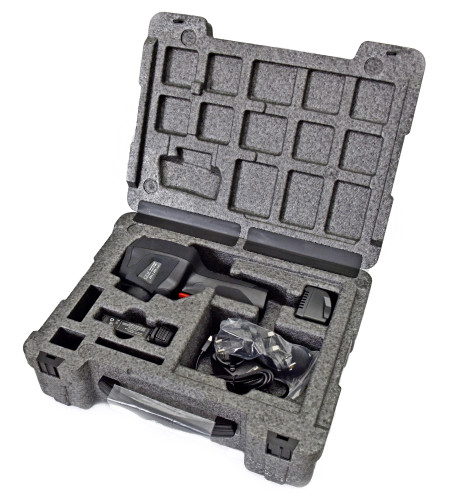

Hard transport case, 7.5mm lens, Tripod base, AC charger/Power supply, Battery, software CD-ROM, Handstrap, micro SD card, USB cable, Gift box.
