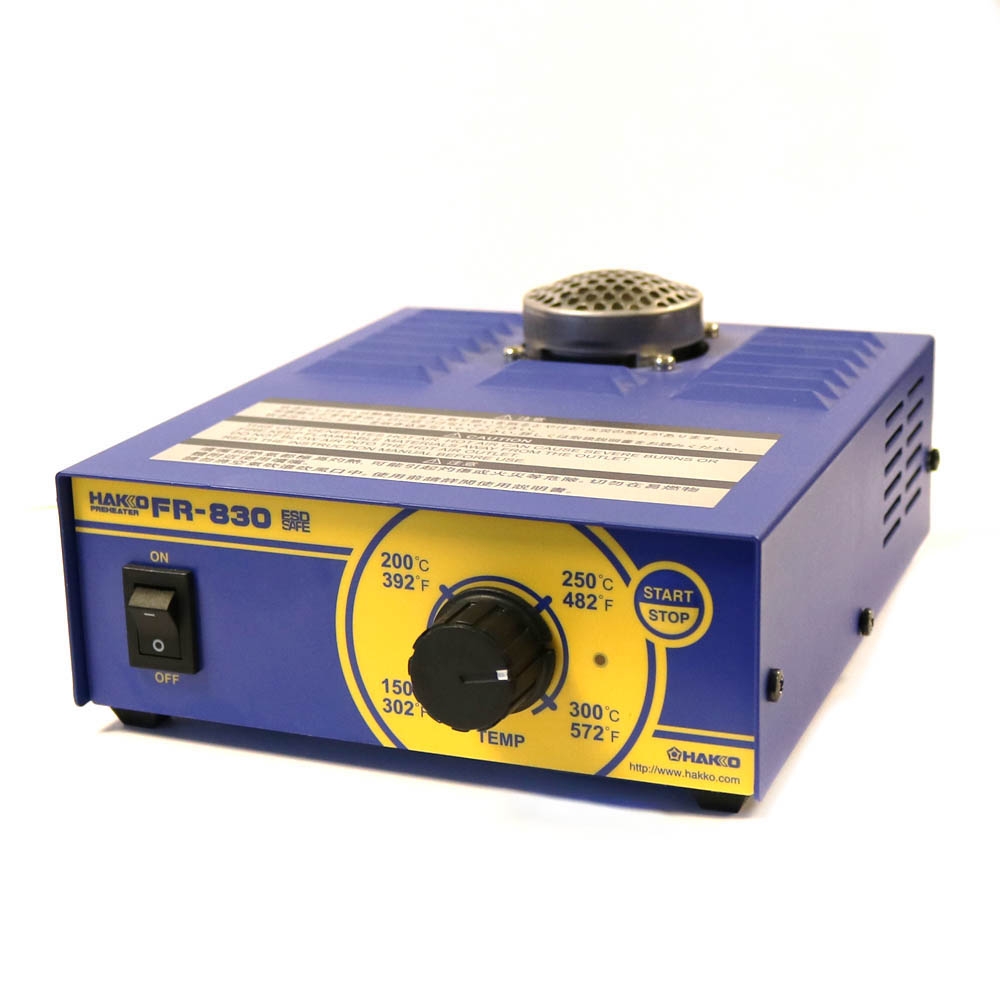

Hakko FR-830. Compact Pre-Heater

Цена - по запросу

Compact pre-heater best suited for heat processing on localized areas
Featuring quick heatup and less variations in temperature
Best suited for pre-heating of multi-layer PWBs

Compact pre-heater with quick start-up and excellent heat recovery.
	Combined with HAKKO FR-803B(SMD Rework Station)
	·Easy attachment with connecting cord which is included in HAKKO FR-803B ·Upgraded working efficiency by heating parts from top and bottom ·Operating FR-820 with buttons of HAKKO FR-803B (Start Ventilating/Cooling Down by pressing “HOT AIR” button on Handpiece of FR-803B) ·Automatically cool down after turning off the power
	Temperature regulating function · Temperature range 150-300°C(302-572°F) · CAL enables fine adjustment of temperature.
	Preheating in short time · The improved air outlet shorten preheat time compared with air conventional product. * Click to enlarge * Please refer to above values, which vary depending on soldering condition. ·Hot air temperature 300ºC ·A gap between the hot air outlet and the PWB for 10mm ·Attach sensors to top/under sides of P.W.B and measure temperature.
	Suitable for multi-layer board preheating
	Automatic cool-down function mounted. · Pushing the "START/STOP" button at the end of work automatically activates the cool-down function.
	Compact, lightweight, and slightly larger hot air outlet.
	Various types of optional functions · Local heating enabled. A set of [Extension pipe w/ Lid] is available.
	Various types of switching! [Hand switch][Foot switch] can be connected.

	Using the optional equipments

HAKKO FR-830
+ Omnivise C1390C (2 used) (Rework system) + Extension pipe/with backflow prevention lid B3263 (option)

Extension pipe:	Used for localized heating
Backflow prevention lid:	When using in combination with SMD rework hot air, use the lid so hot air does not flow back into the FR-830 hot air outlet.

Always use the backflow prevention lid when the FR-830 switch is off.

	Set example

			HAKKO FR-830 + SMD rework station HAKKO FR-803B (discontinued) + Rework fixture C1392B* + Omnivise C1390C* (2 used) （*Rework system）

	Various types of switching! [Hand switch][Foot switch] can be connected.

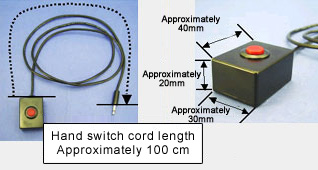

Hand switch	Connection cord length: Approximately 100 cm Switch size: Approx. 30mm (W) × 40mm (D) × 20mm (H) When using the hand switch, switching is not possible on the main device.
Foot switch	Connection cord length: Approximately 135 cm When using the foot switch, switching is not possible on the main device.

Controlling the temperatures of Hot Air Rework System and workpiece using the Temperature Probe

Measure temperatures of Hot Air Rework System and workpiece using the Temperature Probe for Hot Air Rework System (No. C1541) and thermometer (HAKKO FG-100/HAKKO FG-101) to protect the workpiece.

Replacement parts for Temperature Probe for Hot Air Rework System(No. C1541)

How to Use the Temperature Probe for Hot Air Rework System(No. C1541)

Measuring example

* Please refer to above values, which vary depending on soldering condition.

	Measuring condition
	·Hot air temperature 300ºC ·A gap between the hot air outlet and the PWB for 10mm ·Attach sensors to top/under sides of P.W.B and measure temperature.

Please keep a gap between the hot air outlet and the PWB for more than 10mm to allow the air to flow. When there is not enough space for the air to flow, the fuse may blow up.

How to use

	When should the optional Temperature Probe for Hot Air Rework System(No. C1541) be used?

The Temperature Probe for Hot Air Rework System (No. C1541) is equipped with 2 types of sensors. Before measuring temperatures as follows, connect the sensor to the thermometer.
Sensor A:	When measuring the temperature of hot air blown from the nozzle: Correcting thermal control can be made by confirming the temperature of the hot air that is actually blown.
Sensor B:	When measuring the temperature of applicable parts (workpieces): Rework can be performed without causing damage to the parts being reworked (QFP, etc.)

How to Use the Temperature Probe for Hot Air Rework System(No. C1541)

Packing List

Model No.	Packing List
FR-830	HAKKO FR-830, Power cord, Instruction manual

Specifications

Model No.	FR-830
Power consumption	210W (100V), 240W (110V), 470W (120V), 230W (220V), 250W (230V), 270W (240V)
Air flow	0.15m³/min. (fan capability)
Temperature range	150 to 300ºC (Above the blow exit)
Dimensions	140(W)×75(H)×185(D)mm
Weight	0.75kg

* Weight (w/o cord)
* Height(H) is the distance from bottom of the feet to the top of the hot air outlet.

Options

Part No.	Name	Specifications
B3263	Extension pipe	with lid
B2763	Hand switch
B1649	Foot switch
C1391B	Nozzle tray
C1392B	Rework fixture
C1390C	Omnivise

Maintenance

Category	Title
How to use	How to use the temperature probe for the hot air rework system (No.C1541)
How to use	Why must a certain distance be kept between the hot air outlet on the HAKKO FR-830 and the PWB?
