DC источник питания Itech IT-N6323A

⌄

82 235 руб.

Последняя цена (на момент наличия)

Производитель: ITECH
Модель: IT-N6323A
Наличие: Нет в наличии

0 отзывов / Написать отзыв

Основные характеристики IT-N6323A

Напряжение	CH1:60 В；CH2:60 В；CH3:9 В ；
Ток	CH1:3A；CH2:3A；CH3:5A；
Мощность	CH1:100 Вт；CH2:100 Вт；CH3:45 Вт；
Разрешение	10mV/1mA
Точность	≤0.02%+18mV/ ≤0.05%+1.5mA
Интерфейс	USB
Размер	2U half-rack

Краткое описании серии IT-N6300

The IT-N6300 Series is a high-performance triple-output DC power supply from ITECH, housed in a compact 2U half-rack chassis. Each channel operates independently, with series/parallel and synchronization capabilities for versatile testing needs. A 4.3-inch high-resolution LCD offers intuitive control for parameter setting, test programming, and waveform monitoring. High-resolution output (1 mV/0.1 mA) ensures precise voltage and current delivery.
With low ripple, CC/CV priority modes, and FOLDBACK protection, the IT-N6300 ensures stable and safe operation. Flexible control options, including panel and remote programming, simplify system integration. Ideal for labs, manufacturing, and communications testing, the IT-N6300 combines precision, reliability, and efficiency for advanced power management.

Модельный ряд IT-N6300

Модель	Напряжение	Ток	Мощность	Разрешение	Точность	Интерфейс	Размер
IT-N6322A	CH1:32 В；CH2:32 В；CH3:9 В ；	CH1:6A；CH2:6A；CH3:5A；	CH1:100 Вт；CH2:100 Вт；CH3:45 Вт；	10mV/1mA	≤0.02%+10mV/ ≤0.05%+3mA	USB	2U half-rack
IT-N6322B	CH1:32 В；CH2:32 В；CH3:15 В ；	CH1:6A；CH2:6A；CH3:5A；	CH1:100 Вт；CH2:100 Вт；CH3:45 Вт；	1mV/0.1mA	≤0.02%+7mV/ ≤0.03%+1.8mA	USB/LAN/Digital IO/RS232	2U half-rack
IT-N6323A	CH1:60 В；CH2:60 В；CH3:9 В ；	CH1:3A；CH2:3A；CH3:5A；	CH1:100 Вт；CH2:100 Вт；CH3:45 Вт；	10mV/1mA	≤0.02%+18mV/ ≤0.05%+1.5mA	USB	2U half-rack
IT-N6323B	CH1:60 В；CH2:60 В；CH3:15 В ；	CH1:3A；CH2:3A；CH3:5A；	CH1:100 Вт；CH2:100 Вт；CH3:45 Вт；	1mV/0.1mA	≤0.02%+12mV/ ≤0.03%+0.9mA	USB/LAN/Digital IO/RS232	2U half-rack
IT-N6332A	CH1:32 В；CH2:32 В；CH3:9 В ；	CH1:10A；CH2:10A；CH3:5A；	CH1:200 Вт；CH2:200 Вт；CH3:45 Вт；	10mV/1mA	≤0.02%+10mV/ ≤0.05%+5mA	USB	2U half-rack
IT-N6332B	CH1:32 В；CH2:32 В；CH3:15 В ；	CH1:10A；CH2:10A；CH3:5A；	CH1:200 Вт；CH2:200 Вт；CH3:45 Вт；	1mV/0.2mA	≤0.02%+7mV/ ≤0.03%+3mA	USB/LAN/Digital IO/RS232	2U half-rack
IT-N6333A	CH1:60 В；CH2:60 В；CH3:9 В ；	CH1:5A；CH2:5A；CH3:5A；	CH1:200 Вт；CH2:200 Вт；CH3:45 Вт；	10mV/1mA	≤0.02%+18mV/ ≤0.05%+2.5mA	USB	2U half-rack
IT-N6333B	CH1:60 В；CH2:60 В；CH3:15 В ；	CH1:5A；CH2:5A；CH3:5A；	CH1:200 Вт；CH2:200 Вт；CH3:45 Вт；	1mV/0.1mA	≤0.02%+12mV/ ≤0.03%+1.5mA	USB/LAN/Digital IO/RS232	2U half-rack

Особенности серии IT-N6300

Features

♦ 4.3-inch Color LCD Display
♦ Fully Isolated Triple Channels with Independent Control
♦ Multiple Output Modes: Series, Parallel, and Synchronous
♦ Auto Range Mode for Versatile Testing Needs
♦ Transient Response Time: ≤50 μs
♦ High Accuracy: ≤0.02% + 3 mV / ≤0.03% + 1.5 mA
♦ Programming Response Time: 5 ms
♦ Low Output Ripple and Noise
♦ CC/CV Priority Modes
♦ Comprehensive Protection Features: OVP, UVP, OCP, UCP, OPP, OTP, and FOLDBACK
♦ Supports Local and Remote Sensing Modes
♦ Built-in USB, LAN, Digital I/O, and RS232 Communication Interfaces (on Select Models)

Преимущества серии IT-N6300

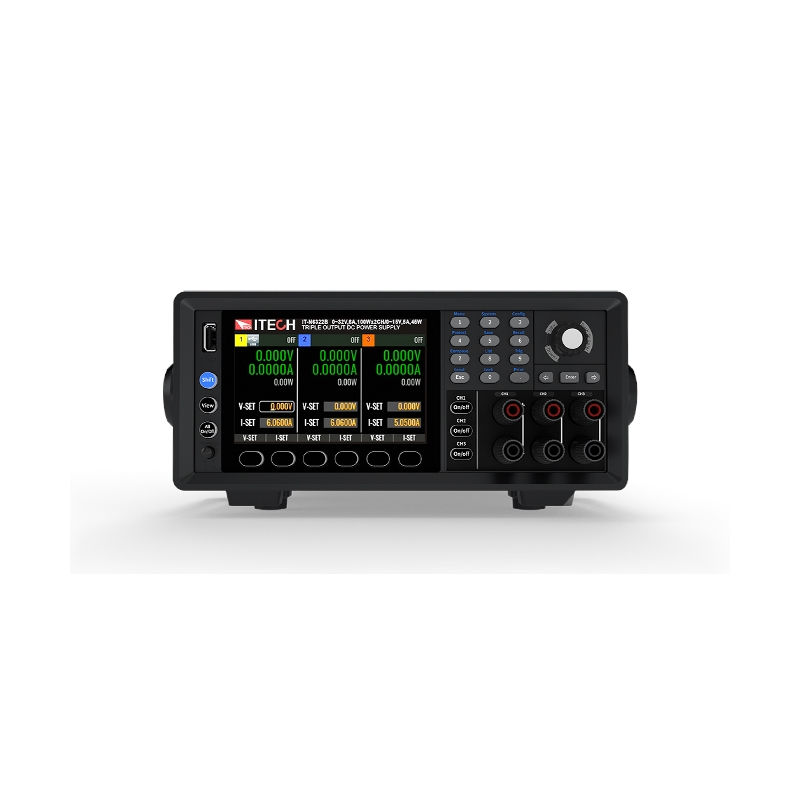

Graphical User Interface (GUI)

The IT-N6300 Series features a 4.3-inch color LCD display with English and Chinese language support, meeting diverse global needs. The intuitive interface enables easy parameter settings, waveform observation, and quick language switching, ensuring smooth operation for all users. This design enhances usability, improves user experience, and ensures compatibility across regions and applications.

Multiple Output Modes

The IT-N6300 Series integrates multiple built-in output modes, enabling flexible range expansion without the need for additional wiring. This streamlined design simplifies setup, reduces external cabling complexity, and minimizes errors caused by poor connections or intricate wiring, ensuring enhanced reliability and safety. With its capability to adapt to complex testing scenarios, the IT-N6300 Series boosts operational efficiency, improves measurement accuracy, and delivers a seamless, professional user experience.

List

The IT-N6300 Series features a LIST sequence editing function on each channel, allowing users to customize output waveforms and save them either to the device's internal memory or an external USB drive for future use. It also supports importing externally created waveform files for quick loading, eliminating the need for reconfiguration before testing. This capability streamlines the waveform setup process, improves testing efficiency, and offers users exceptional flexibility to handle a wide range of testing scenarios.

Видео

Список документов товара

IT-N6300 series catalog

Фильтр источники питания
Номинальная мощность, Вт	100
Номинальный ток, A	5
Напряжение, В	60
