LGA10C Series Artesyn C-Class

  • Цена - по запросу

  • Производитель: Artesyn
  • Модель: LGA10C Series
  • Наличие: Нет в наличии

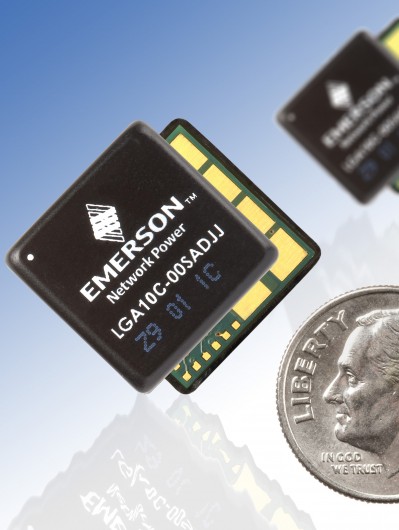

The LGA10C is a 10A non-isolated board-mount DC-DC converter aimed at providing high density and cost-effective power solutions in a low profile, surface mount land grid array package for space sensitive applications. The model has a total maximum power of 50 Watts, a wide input voltage range from 3 to 14 Volts and an adjustable output voltage range of 0.59 to 5.1 Volts.

Особенности

  • Wide Input Voltage Range
  • Excellent Transient response
  • High Efficiency
  • Standard Features: Input UVLO, Enable, Output Adjust, Differential Remote Sense, Output Margining, Power Good Signal, Short Circuit and Overcurrent Protection
  • Low Profile in a small compact LGA footprint
  • Wide Output Adjust Range
  • RoHS 6 Compliant

Технические характеристики

  • Total Max Power:
    50 W
  • Total Max Current:
    10 A
  • Input Voltage:
    3 V to 14 V
  • Output Voltage:
    0.59 V to 5.1 V
  • Outputs:
    Single
  • Size (L x W x H):
    0.640" x 0.640" x 0.129"
  • Warranty:
    2 years
  • Operating Temperature:
    -40°C to +85°C

Electrical Specifications

  • Input
  • Output
  • Efficiency: 92% Typ (5 V @ 10 A, 12 Vin)
  • Input Voltage: 3.0 - 14.0 VDC
  • Output Margining: ± 33% of Vo or 5.5 VDC max
  • Wide Output Adjust: 0.59 - 5.1 VDC
  • Output Enable: Positive Logic
  • Power Good: Open Collector - Positive Logic
