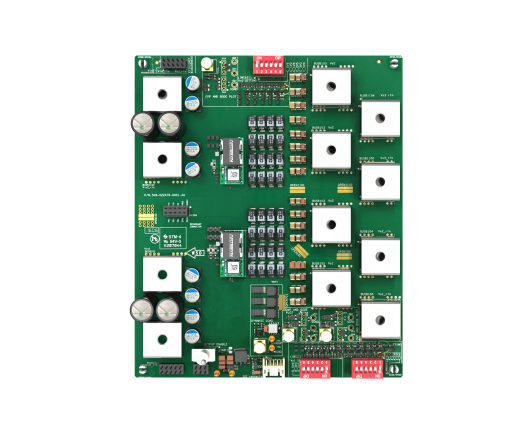

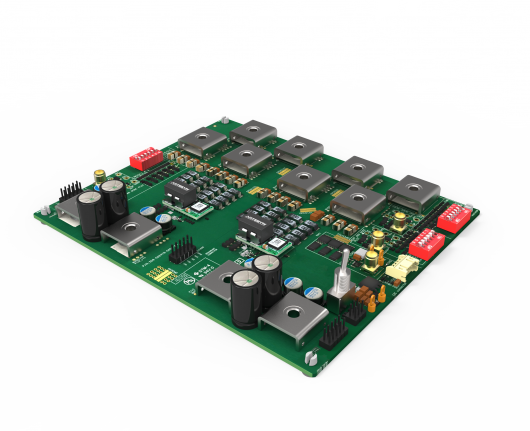

LGA80D Demo Kit Series Artesyn Evaluation board for LGA80D

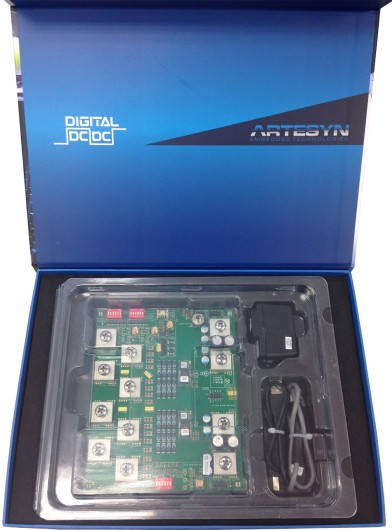

Artesyn’s LGA80D evaluation kit gives you the ability to connect the demonstration board to a USB socket on a PC, with the PMbus interface, dongle and cable provided in the kit and control and monitor the LGA80D units as they would be used in an application.

Особенности

• Allows users to evaluate the LGA80D in either independent output mode, single output mode, or stacked-output mode.
• 1 module is in single 80A configuration
• 1 module is in dual 40A configuration
• Dip switches can set the modules O/P voltage if desired
• PMBus interface and dongle are required to connect to your computer
• GUI software available to install and run the evaluation card

Технические характеристики

• Total Max Power:
  400 W
• Total Max Current:
  160 A
• Input Voltage:
  7.5 V to 14 V
• Output Voltage:
  0.6 V to 5.2 V
• Outputs:
  Triple
• Warranty:
  2 years
• Operating Temperature:
  N/A
