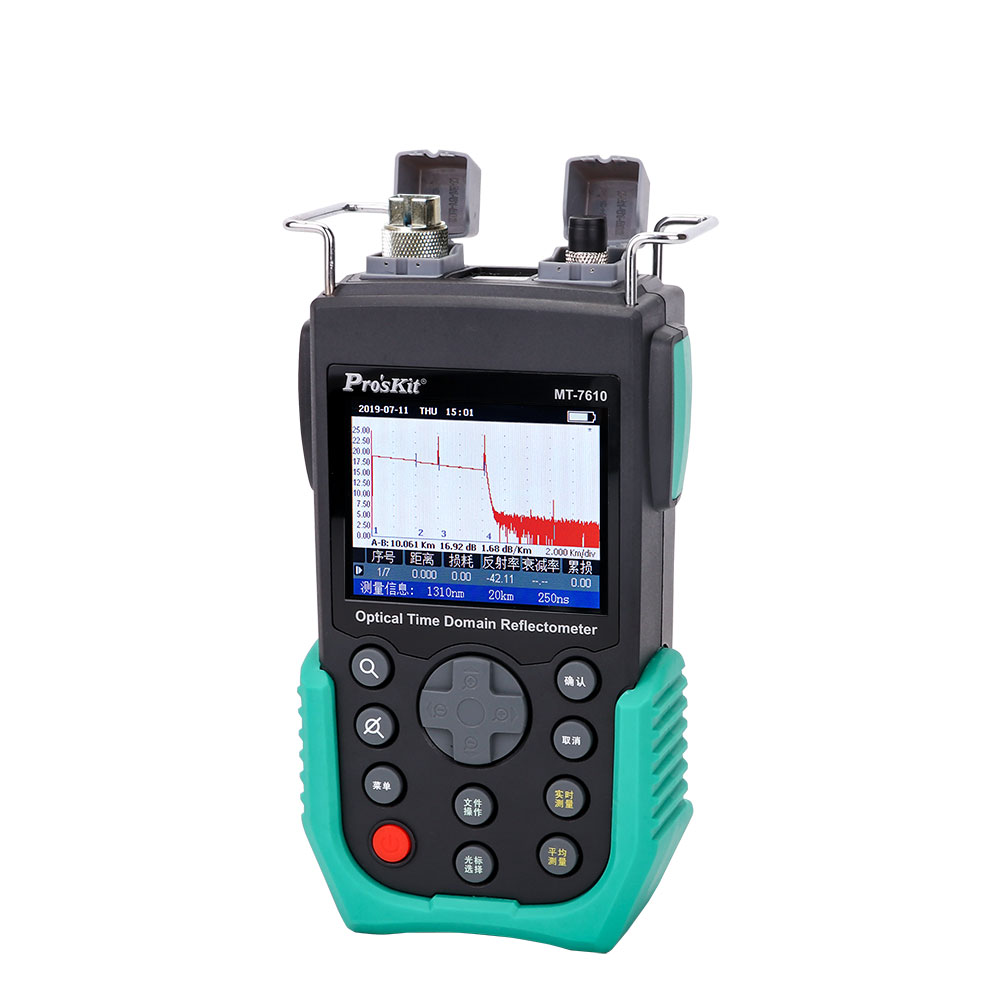

Рефлектометр оптический Pro'sKit MT-7610F

Цена - по запросу

Производитель: Pro'sKit
Модель: MT-7610F
Наличие: Нет в наличии

MT-7610 is an advanced diagnostic tool for optical fibers to help engineers quickly troubleshoot problems, allowing them to visually locate reflective events like connections and fiber breaks and non-reflective events like splices and tight bends by studying the graphical trace.

Automatic one-button testing, wavelength support 1310, 1550nm.
Palm design, small, lightweight, easy to carry.
High contrast 3.5 inch color TFT LCD.
Detect short dead zone event accurately .
High speed signal processing, short test time and fast analysis.
USB port connect to PC for software update and data output.
User-friendly OTDR simulation software shows details of events.
Built-in visual fault locator function.
Comes with rechargeable lithium polymer battery, support max 8 working hours.

Model no.	MT-7610
Optical fiber type	SM optical fiber
Dynamic range	24dB(1310nm) / 22dB(1550nm)
Wavelength	1310nm±20nm, 1550nm±20nm
Optical fiber connector	FC/PC, (SC/PC、ST/PC Optional)
Display	3.5 inch color LCD
Display resolution	320x240
Measuring distance (km)	0.1~100
distance uncertainty (m)	±(0.8+0.005%*distance+Sampling resolution)
Pluse width	10ns~10us
Measurement time	5s~180s
Attenuation blind area	8m(@minimum plus width)
Event blind area	3m(@minimum plus width)
Loss threshold (db)	0.05dB
loss resolution (db)	0.01dB
sampling resolution (m)	0.4 to 1.6
Sampling points	Up to 8000
Typical real-time refresh (hz)	2
data storage	32MB Built-in storage(support external TF card storage. maximum 32G/ optional)
Communication connector	mini USB
VFL power	1mW(650nm±10nm)
Power source	Rechargeable Lithium Polymer battery 7.4v 3100mAh
Battery working time	standby>15hours, continuous measuring>8 hours
Adaptor	INPUT AC 100~240 50/60Hz; OUTPUT: DC12V/2A
Auto power off	yes
Low battery warning	Indication for low battery energy
Operation voice prompts	yes
Back light	yes
Operation temperature	0~+50°C; <90%RH
Storage temperature	-20~+70°C; <90%RH
Size	195mm×110mm×60mm
Weight	600g
Package	Color box
