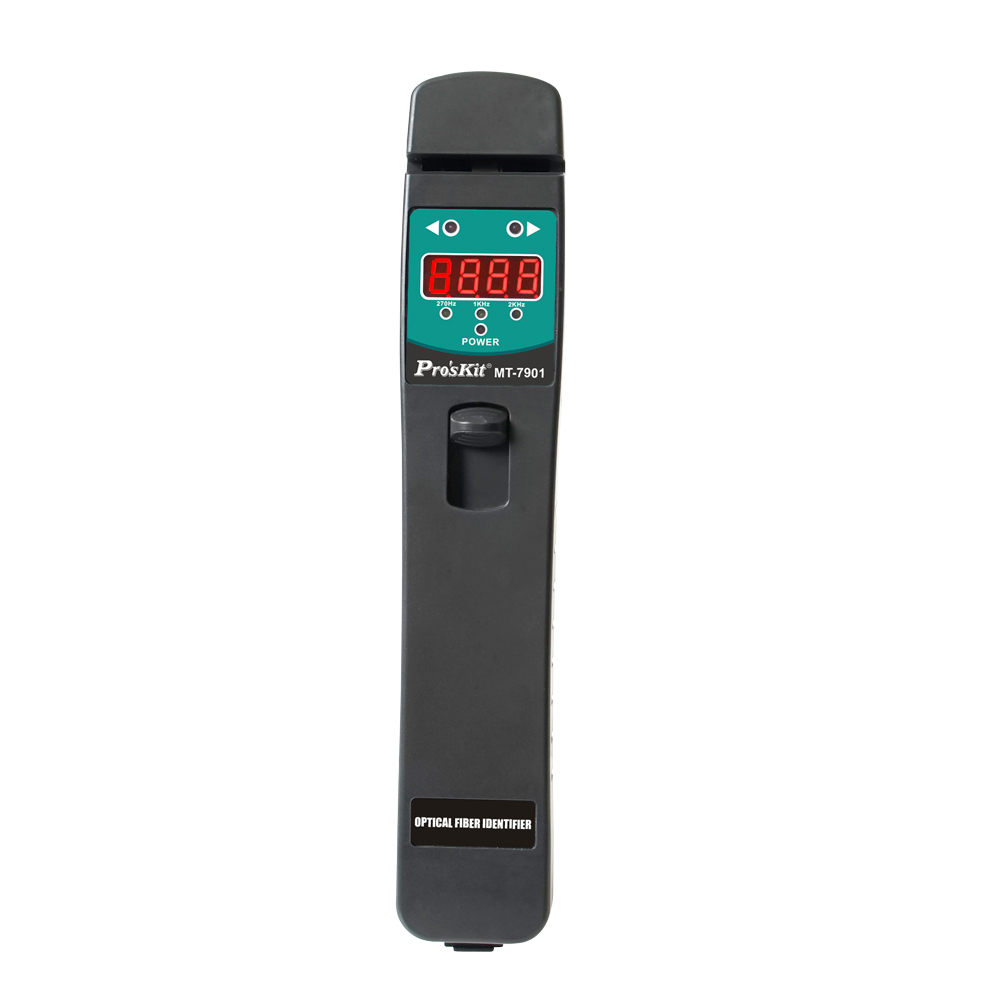

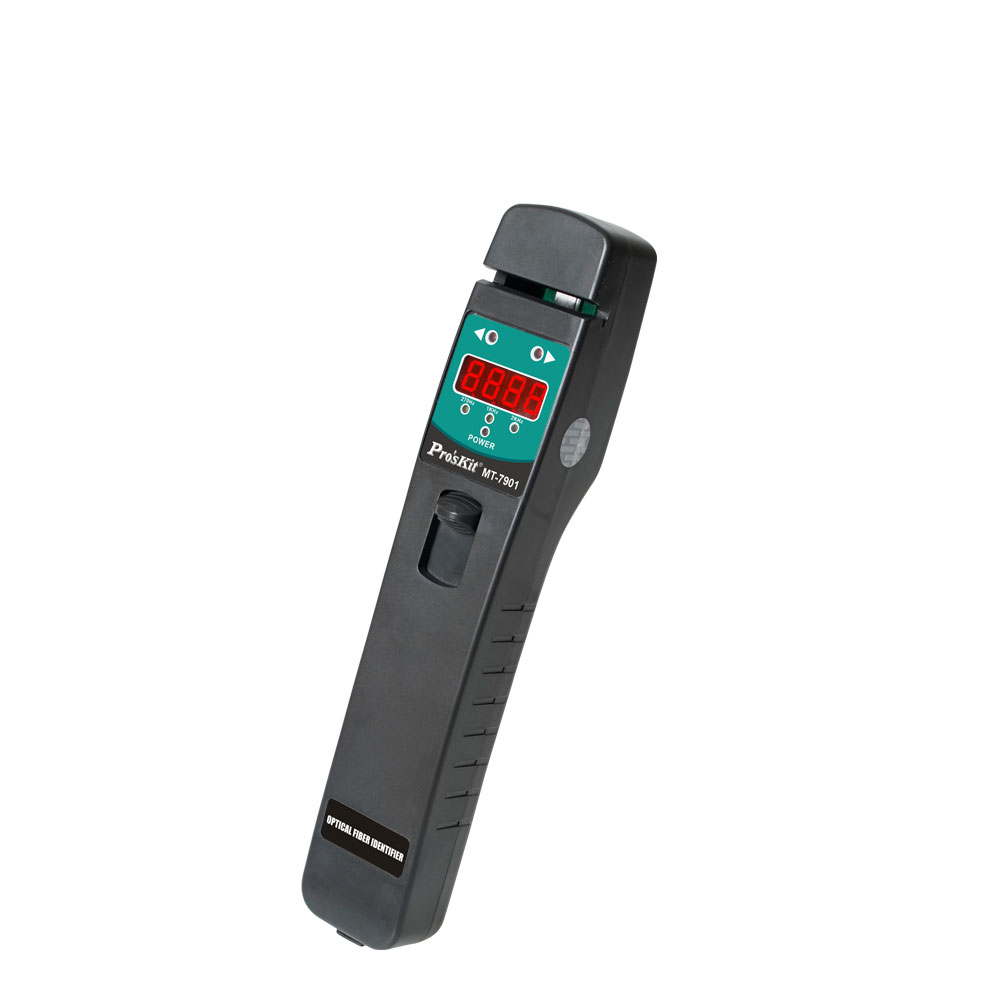

Идентификатор оптического волокна Pro'sKit MT-7901
Цена - по запросу
- Производитель: Pro'sKit
- Модель: MT-7901
- Наличие: Нет в наличии
Live Fiber Identifier & Detector
No damage to fiber
No damage to fiber
Quickly identify the direction of transmitted fiber and display the relative core power without any damages to the bended fiber
Live Fiber Identifier & Detector
No damage to fiber
- Support to detect optical signals without disrupting traffic;Based on non-destructive technology;
- Indicate the signal direction in fiber
- Detect a variety of optical tones,270Hz, 1kHz and 2kHz;
- Suitable for 0.25, 0.9, 2.0, 3.0mm fiber, and no need to replace the clamp block, more convenient than others
| Sensitivity |
250um fiber@1550nm=-35dBm 900um fiber@1550nm=-35dBm 2.5mmmm fiber@1550nm=-30dBm |
| Max. Input | +5dBm |
| Wave Respond | 800nm~1700nm |
| Clamp Loss | <2.5db Typical |
| Power Supply | AA Alkaline Cell or Ni-Mh Cell |
| Frequency Identify | 270Hz/1KHz/2KHz |
| Fiber Type | Dia. 250um/900um/2.5mm/3mm SM fiber |
| Sound | Yes |
| Fiber Press | <100KPSI |
| Auto Power Off | Yes |
