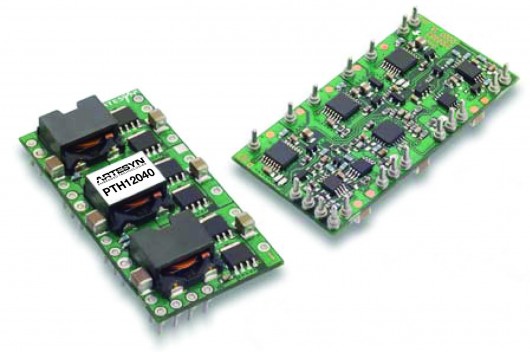

PTH12040 Series Artesyn 275 Watt (50 Amp) Non-Isolated DC-DC Converters

  • Цена - по запросу

  • Производитель: Artesyn
  • Модель: PTH12040 Series
  • Наличие: Нет в наличии

The PTH12040 series non-isolated DC-DC converter complies with the Point-of-Load Alliance (POLA) standard. It offers some of the most advanced POL functions in the industry, including Auto-Track™ sequencing for controlled power-up/power-down of complex semiconductor devices such as DSPs, FPGAs and ASICs, and voltage margining. Standard features include pre-bias startup, programmable input undervoltage lockout, differential remote sense, remote On/Off and auto resetting short-circuit protection.

Особенности

  • 50 A output current
  • 12 V input voltage (8 Vdc to 14 Vdc)
  • Wide-output voltage adjust (0.8 Vdc to 5.5 Vdc)
  • Auto-track™ sequencing
  • Margin up/down controls
  • Efficiencies up 96%
  • Output ON/OFF inhibit
  • Differential remote sense
  • Programmable Under-Voltage Lockout (UVLO)
  • Point-of-Load-Alliance (POLA) compatible
  • Available RoHS compliant

Технические характеристики

  • Total Max Power:
    275 W
  • Total Max Current:
    50 A
  • Input Voltage:
    8 V to 14 V
  • Output Voltage:
    0.8 V to 5.5 V
  • Outputs:
    Single
  • Size (L x W x H):
    2.050" x 1.050" x 0.360"
  • Warranty:
    2 years
  • Operating Temperature:
    -40°C to +85°C

Electrical Specifications

  • Input
  • Output
  • Other
  • Input voltage range: 8 - 14 Vdc
  • Input standby current: 35 mA typ.
  • Voltage adjustability: 0.8 - 5.5 Vdc
  • Ripple and noise: 20 MHz bandwidth; 15 mV typ.
  • Efficiency: 96% max
