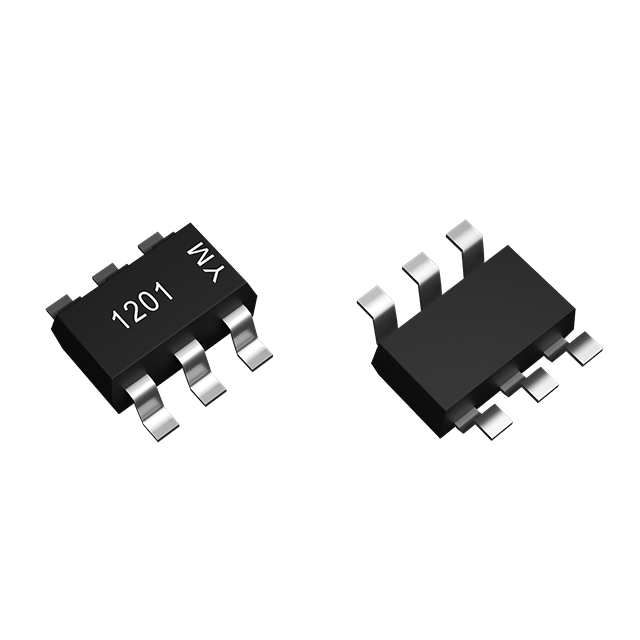

Mornsun Компонент для DC/DC SCM1201B
Цена - по запросу
- Производитель: Mornsun
- Модель: SCM1201B
- Наличие: Нет в наличии
Особенности
TheSCM1201BisadriverintegratedwithMOSFETsfortheprimarysideofapush-pullpower.Thechipcanfunctionatthelowinputvoltageof 3V,andwillnotbedamagedunderthehighinputvoltageof9Vinonesecond..Thedevicecontains,twodrivesystemsandtwopowerMOSFET,and eachdrivesystemdecidescircuit’sdirectionofoneprimarywinding.EachdrivesystemincludesonepowerNMOSFET.Twodrivesystemsoperatein turnstoachievepush-pulldrive.TwopowerNMOSFETsarehighlysymmetricalinordertodecreasethedegreeofmagneticbiasingofpush-pull topology.TheSCM1201Bisalsointegratedwiththreekeytechnologiestoimprovereliability.Thefirstoneissoftstartfunction,whichlimitsthecurrent ofMOSFETtoavoidthedamagecausedbythelargecurrentimpactwhenturningonthepower,andquantitativelyguaranteesthecapacitiveloadin CCloadmode.Thesecondoneisoutputover-currentandshortcircuitprotection.Ontheonehand,theSCM1201Bdistinguishesbetweenthe over-currentprotectionandtheshort-circuitprotection,whichcancontroltheshort-circuittemperaturerisewhileguaranteethecapacitiveload.Onthe otherhand,thechipcanadjustprotection’sthresholdbasedontheinputvoltageandtempreaturetoimprovetheconsistency.Thelastoneisover temperatureprotection,whenthechipoperatesbeyondthespecifiedtemperature,itwillentersthedormancystateautomatically.Itwilloperateagain whenthetemperaturedecreasestothesetpoint.
Технические характеристики
| Модель | SCM1201B |
| Мощность, Вт | ≤1 |
| Упаковка | TSOT-23-6 |
| Topology | Push-Pull |
| Режим управления | - |
| Fsw, кГц | 245 |
| OTP | Built-in |
| OCP | Built-in |
| SCP | Built-in |
| UVLP | Built-in |
| OLP | Built-in |
