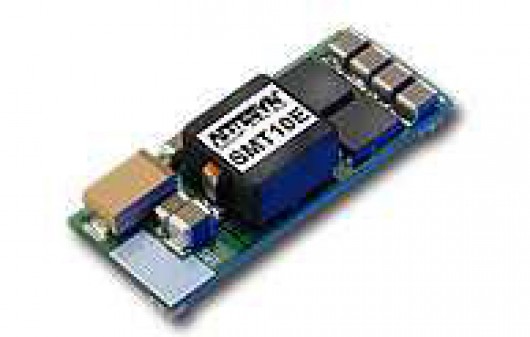

SMT10E_12V Series Artesyn 36 Watt (10 Amp) Non-Isolated DC-DC Converters

The SMT10E_12V series non-isolated DC-DC converter accepts a 10 to 14 Vdc input and produces an output that can be trimmed over a very wide 0.8 to 3.63 Vdc range to satisfy a broad diversity of semiconductor power needs. Rated at 33 watts, the converter has a typical efficiency of 94% and can deliver up to 10 amps output current. Standard features include remote On/Off and comprehensive protection against short-circuit and overtemperature conditions. Packaged as a low profile surface-mount module, it has a footprint of 0.53 x 1.3 inch (13.5 x 33 mm) and an installed height of only 0.32 inch (8.2mm).

Технические характеристики

• Total Max Power:
  36 W
• Total Max Current:
  10 A
• Input Voltage:
  10 V to 14 V
• Output Voltage:
  0.8 V to 3.63 V
• Outputs:
  Single
• Size (L x W x H):
  1.300" x 0.530" x 0.323"
• Warranty:
  2 years
• Operating Temperature:
  -40°C to +85°C
