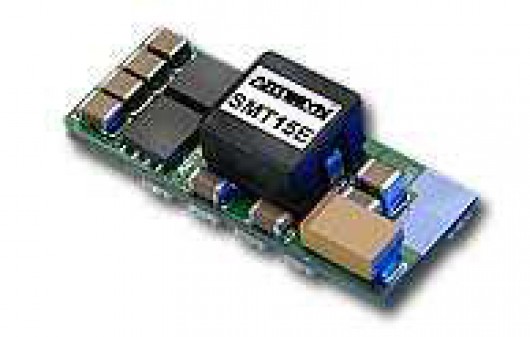

SMT15E_12V Series Artesyn 49.5 Watt (15 Amp) Non-Isolated DC-DC Converters

The SMT15E_12V series non-isolated DC-DC converter accepts a 10 to 14 Vdc input and produces an output that can be trimmed over a very wide 0.8 to 3.63 Vdc range to satisfy a broad diversity of semiconductor power needs. Rated at 49.5 watts, the converter has a typical efficiency of 94% and can deliver up to 15 amps. Standard features include remote On/Off, remote sense and comprehensive protection against short-circuit and overtemperature conditions. Packaged as a low profile surface-mount module, it has a 0.53 x 1.3 inch (13.5 x 33 mm) footprint and an installed height of only 0.32 inch (8.2 mm).

Особенности

• 15 A Current rating
• Input voltage range: 10.0 Vdc -14.0 Vdc
• Output voltage range: 0.8 Vdc - 3.63 Vdc
• Ultra high efficiency: 94% @ 12 Vin and 3.3 Vout
• Extremely low internal power dissipation
• Minimal thermal design concerns
• Designed in reliability: MTBF of 6,920,000 hours per Telcordia SR-332
• Ideal solution where board space is at a premium or tighter card pitch is required
• Industry standard surface-mount footprint
• Available RoHS compliant
• 2 year warranty

Технические характеристики

• Total Max Power:
  54 W
• Total Max Current:
  15 A
• Input Voltage:
  10 V to 14 V
• Output Voltage:
  0.8 V to 3.63 V
• Outputs:
  Single
• Size (L x W x H):
  1.300" x 0.530" x 0.320"
• Warranty:
  2 years
• Operating Temperature:
  -40°C to +85°C
