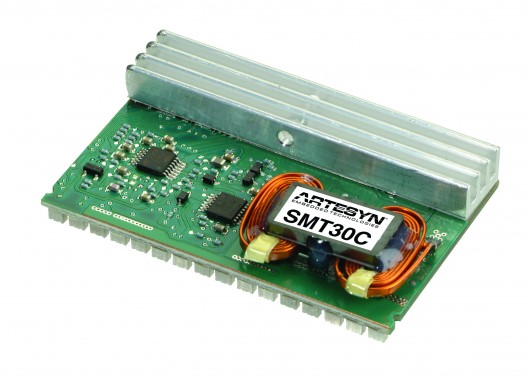

SMT30C Series Artesyn 150 Watt (30 Amp) Non-Isolated DC-DC Converters

The SMT30C series surface mount 30 amp non-isolated DC-DC converter is designed for cost- and space-sensitive applications. It accepts a 10.2 to 13.8 Vdc input and provides an output that is adjustable from 0.9 to 5.0 Vdc to accommodate a wide variety of silicon power needs. Rated at 150 watts, the converter has a typical efficiency of 91%. Standard features include remote sense, remote On/Off and remote ‘power good’ indication.

Технические характеристики

• Total Max Power:
  150 W
• Total Max Current:
  30 A
• Input Voltage:
  10.8 V to 13.8 V
• Output Voltage:
  0.9 V to 5 V
• Outputs:
  Single
• Size (L x W x H):
  2.280" x 1.452" x 0.410"
• Warranty:
  2 years
• Operating Temperature:
  0 to +80°C
