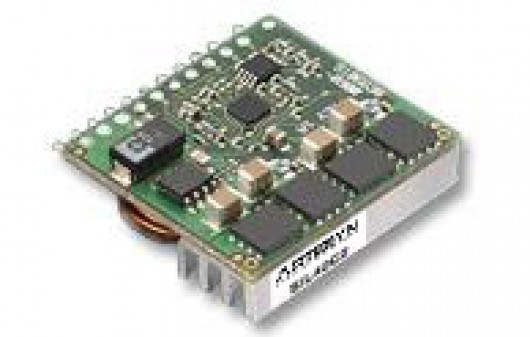

SMT40C2 Series Artesyn 200 Watt (40 Amp) Non-Isolated DC-DC Converters

The SIL40C2 and SMT40C2 series of 40 amp non-isolated DC-DC converters are designed for cost- and space-sensitive applications. Both converters accept a wide range 4.5 to 13.8 Vdc input and provide an output that is adjustable from 0.6 to 5.0 Vdc to accommodate a wide variety of silicon power needs. Rated at 200 watts, the converters are capable of delivering up to 40 amps and have a typical efficiency of 94%. Standard features include remote sense, remote On/Off and remote ‘power good’ indication. These converters also support current sharing – multiple modules can be connected in parallel.

Особенности

• Wide input voltage range: 4.5 to 13.8Vdc
• Wide output voltage trim / adjustability: 0.60 to 5.0Vdc
• High Efficiency up to 94%
• Remote on/off
• Remote sense
• Excellent transient response
• Current sink capability for termination applications
• No added input or output capacitors needed for ripple capability or stability

Технические характеристики

• Total Max Power:
  200 W
• Total Max Current:
  40 A
• Input Voltage:
  4.5 V to 13.8 V
• Output Voltage:
  0.6 V to 5 V
• Outputs:
  Single
• Size (L x W x H):
  1.200" x 1.100" x 0.442"
• Warranty:
  2 years
• Operating Temperature:
  0 to +70°C
