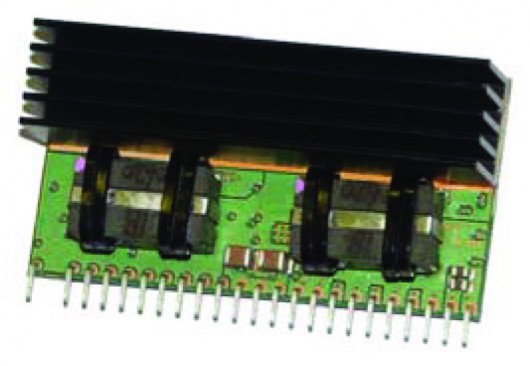

SMT80C2-00SADJ-J Artesyn 400 Watt (80 Amp) Non-Isolated DC-DC Converters

The SIL80C2 and SMT80C2 series of 80 amp non-isolated DC-DC converters are designed for cost- and space-sensitive applications. Both converters accept a wide range 4.5 to 13.8 Vdc input and provide an output that is adjustable from 0.8375 to 5.1 Vdc to accommodate a wide variety of silicon power needs. Rated at 400 watts, the converters are capable of delivering up to 80 amps and have a typical efficiency of 88%. Standard features include differential remote sense, remote On/Off and remote ‘power good’ indication. These converters also support current sharing.

Особенности

• 80 A output rating
• Input voltage range:4.7-13.8 V
• Output voltage range: 0.8375-5.1 V
• Current sharing
• Excellent transient response
• Output voltage adjustability
• Pathway for future upgrades
• Supports silicon low voltage migration
• Resulting in reduced design-in and qual time
• Overtemperature protection
• RoHS compliant

Технические характеристики

• Total Max Power:
  400 W
• Total Max Current:
  80 A
• Input Voltage:
  4.7 V to 13.8 V
• Output Voltage:
  0.8375 V to 5.1 V
• Outputs:
  Single
• Size (L x W x H):
  2.400" x 1.250" x 0.690"
• Operating Temperature:
  0 to +85°C
