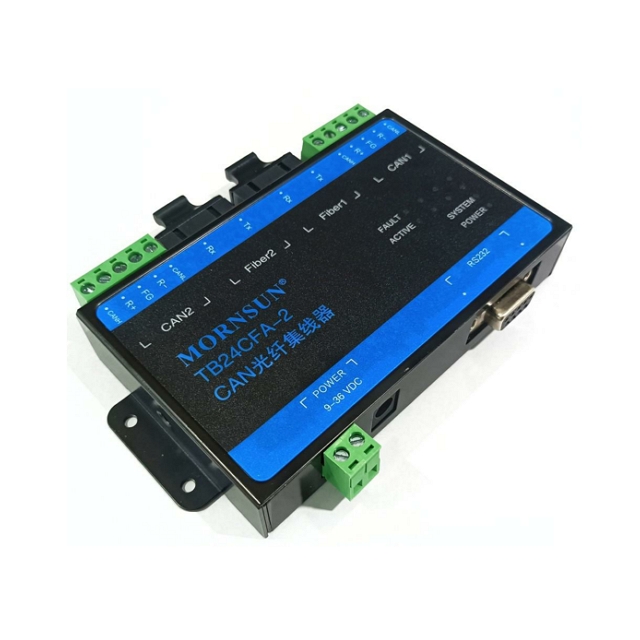

Mornsun Модуль трансивер TB24CFA-2
Цена - по запросу
- Производитель: Mornsun
- Модель: TB24CFA-2
- Наличие: Нет в наличии
Особенности
TB24CFA-2canrealizetransparentconnectionofmultipleCANnetworks,andmulti-pointconnectionofcomplex structureatbuslevel,sothatthetrunknetworkhasnobranchlengthlimit,andanytwonodesinthenetworkcanreach theprotocoldistance.Theequipmenthasfourcommunicationports,andtwotwisted-pairportshaveindependentCAN transceivers,whichcandoublethenumberofnodes.Therefore,whileprovidingafreewiringmode,italsoliftsthedriving limitofthemaximumnumberofnodesofCANtransceiversonthesystembus.Twoopticalfiberportscanmake TB24CFA-2beusedinhighinterferencefieldenvironment,especiallyinhighvoltageandpowersituations. EachportofTB24CFA-2hasindicatorlightsfordetectingbusactivityandbusfailure,whichisconvenientfor observingtheworkingstatusofCANbusnetwork.TB24CFA-2canbeusedinCANnetworkswithabaudrateofupto 1Mbps,andallchannelscanworkatdifferentbaudrates.TB24CFA-2complieswithCANspecification2.0A(11-bitCAN identifier)and2.0B(29-bitCANidentifier).Itsupportstransparentandprotocol-independentCANmessagetransmission, makingitsuitableforavarietyofapplications.Inaddition,itcanbeusedforvarioushigh-levelCANprotocols (CANOpen,SDS,J1939,DeviceNetorothercustomizedprotocols). TB24CFA-2canbeconfiguredwiththecorrespondingCANmessagefilter,whichcanensurethatonlytherequired dataistransmittedtootherCANnetworksthroughtherepeater.Atthesametime,italsohasadataroutingfunction, whichcanselectivelyforwardCANmessagesreceivedfromonechanneltoanotherchannel.Therefore,thedevicecan effectivelyreducetheloadonthenetwork.TB24CFA-2canbeconfiguredbyconnectingtoaPCthroughan asynchronousserialcommunicationinterface;itprovidesconfigurationsoftwarebasedonWindowssystem,whichis simpletouseandsupportsimmediateconfigurationeffect.Afterthedeviceisconfigured,itcanbeputintoworkwithout anyoperation.
Технические характеристики
| Модель | TB24CFA-2 |
| Входное напряжение, В (VDC) | 9~36 |
| Количество узлов | 110 |
| Тип протокола | 485 |
| Скорость передачи UART (бит/с) | 5K-1M |
| SPI Rate(Mbit/s) | - |
| CAN Baud Rate(bps) | 5K-1M |
| Optical Fiber Rate | 5K-800K |
