Источники питания AC/DC Traco Power серия TBL
- от 9 587 руб.
- Производитель: Traco Power
- Модель: TBL
| Модель | Цена | На складе, шт | Количество |
| TBL 015-105 | 9 587 руб. | по запросу |
|
| TBL 015-112 | 9 587 руб. | по запросу |
|
| TBL 015-124 | 9 587 руб. | по запросу |
|
| TBL 030-112 | 11 844 руб. | по запросу |
|
| TBL 030-124 | 11 817 руб. | по запросу |
|
| TBL 060-112 | 15 121 руб. | по запросу |
|
| TBL 060-124 | 15 209 руб. | по запросу |
|
| TBL 090-112 | 19 063 руб. | по запросу |
|
| TBL 090-124 | 19 065 руб. | по запросу |
|
| TBL 150-112 | 28 430 руб. | по запросу |
|
| TBL 150-124 | 28 430 руб. | по запросу |
|

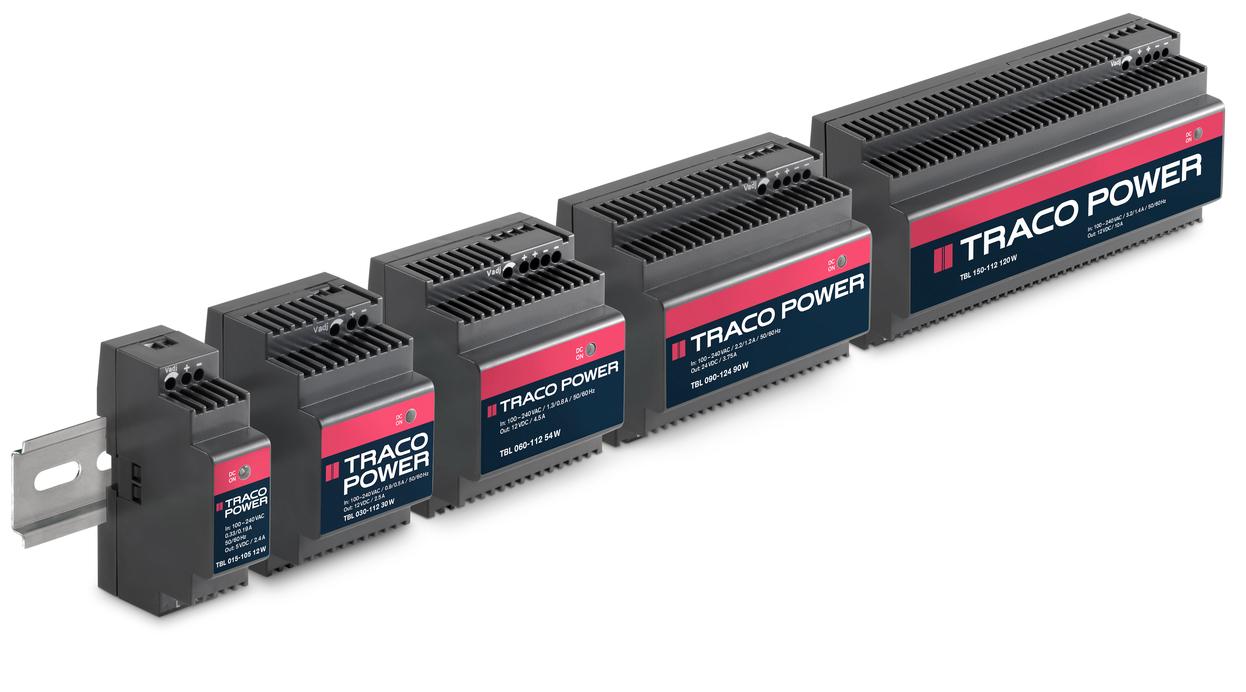

The TBL series is a new range of small DIN-rail mount power supplies which have been designed particularly with building- and factory automation applications in mind. The ultra-compact low profile cases fit in the standardized wall mounted control panels used in the building automation industry. The power supplies can be operated at full load across an ambient temperature range of –25°C to +60°C without need of additional cooling. Universal input voltage range and full compliance with all important safety and EMC standards qualifies the TBL series power supplies for worldwide markets. For commercial and residential applications requesting safety class ll the models up to 90 Watt are approved to UL 1310.
Особенности
- Low profile case, module depth only 55mm
- Fits into flat control panels used in building automation
- Safety class ll product
- UL 1310 class II, NEC class 2 compliance (models up to 90 W)
- UL 508 listed
- 5 power ranges from 15 to 150 W
- Universal input range 85 to 264 VAC
- Operating temperature range: –25°C to +70°C max.
- Adjustable output voltage
- Short circuit and overload protection
Модельный ряд
| Модель | Мощность | Вход | Выход | Краткое описание |
|---|---|---|---|---|
| TBL 015-105 | 12 W | 85-264 VAC | 5 VDC (5-5.2 VDC) | 15 Watt AC/DC power supply, building automation, 85-264VAC input, 3000 VAC isolation, fits into flat control panels (55 mm depth), DIN-Rail |
| TBL 015-112 | 15 W | 85-264 VAC | 12 VDC (12-16 VDC) | 15 Watt AC/DC power supply, building automation, 85-264VAC input, 3000 VAC isolation, fits into flat control panels (55 mm depth), DIN-Rail |
| TBL 015-124 | 15 W | 85-264 VAC | 24 VDC (24-28 VDC) | 15 Watt AC/DC power supply, building automation, 85-264VAC input, 3000 VAC isolation, fits into flat control panels (55 mm depth), DIN-Rail |
| TBL 030-112 | 30 W | 85-264 VAC | 12 VDC (12-16 VDC) | 30 Watt AC/DC power supply, building automation, 85-264VAC input, 3000 VAC isolation, fits into flat control panels (55 mm depth), DIN-Rail |
| TBL 030-124 | 30 W | 85-264 VAC | 24 VDC (24-28 VDC) | 30 Watt AC/DC power supply, building automation, 85-264VAC input, 3000 VAC isolation, fits into flat control panels (55 mm depth), DIN-Rail |
| TBL 060-112 | 54 W | 85-264 VAC | 12 VDC (12-16 VDC) | 60 Watt AC/DC power supply, building automation, 85-264VAC input, 3000 VAC isolation, fits into flat control panels (55 mm depth), DIN-Rail |
| TBL 060-124 | 60 W | 85-264 VAC | 24 VDC (24-28 VDC) | 60 Watt AC/DC power supply, building automation, 85-264VAC input, 3000 VAC isolation, fits into flat control panels (55 mm depth), DIN-Rail |
| TBL 090-112 | 72 W | 85-264 VAC | 12 VDC (12-16 VDC) | 90 Watt AC/DC power supply, building automation, 85-264VAC input, 3000 VAC isolation, fits into flat control panels (55 mm depth), DIN-Rail |
| TBL 090-124 | 90 W | 85-264 VAC | 24 VDC (24-28 VDC) | 90 Watt AC/DC power supply, building automation, 85-264VAC input, 3000 VAC isolation, fits into flat control panels (55 mm depth), DIN-Rail |
| TBL 150-112 | 120 W | 85-264 VAC | 12 VDC (12-16 VDC) | 150 Watt AC/DC power supply, building automation, 85-264VAC input, 3000 VAC isolation, fits into flat control panels (55 mm depth), DIN-Rail |
| TBL 150-124 | 150 W | 85-264 VAC | 24 VDC (24-28 VDC) | 150 Watt AC/DC power supply, building automation, 85-264VAC input, 3000 VAC isolation, fits into flat control panels (55 mm depth), DIN-Rail |
