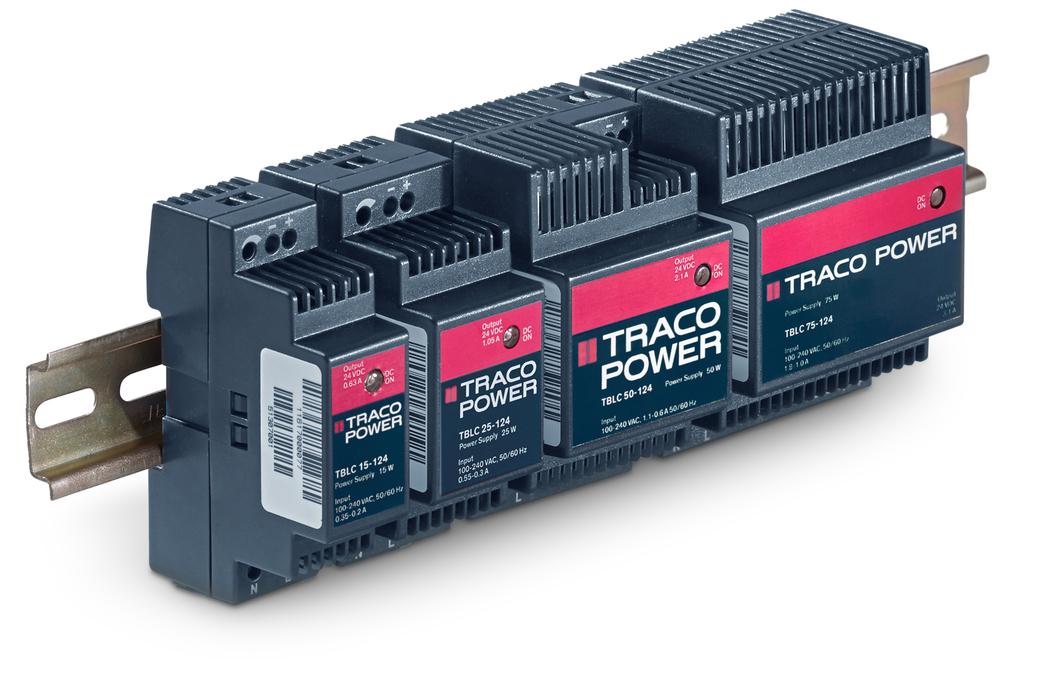

Источники питания AC/DC Traco Power серия TBLC
- от 7 842 руб.
- Производитель: Traco Power
- Модель: TBLC
| Модель | Цена | На складе, шт | Количество |
| TBLC 06-105 | 8 009 руб. | по запросу |
|
| TBLC 06-112 | 8 074 руб. | по запросу |
|
| TBLC 06-124 | 7 842 руб. | по запросу |
|
| TBLC 15-105 | 9 725 руб. | по запросу |
|
| TBLC 15-112 | 9 511 руб. | по запросу |
|
| TBLC 15-124 | 9 163 руб. | по запросу |
|
| TBLC 25-105 | 11 315 руб. | по запросу |
|
| TBLC 25-112 | 11 198 руб. | по запросу |
|
| TBLC 25-124 | 10 794 руб. | по запросу |
|
| TBLC 50-112 | 13 018 руб. | по запросу |
|
| TBLC 50-124 | 12 798 руб. | по запросу |
|
| TBLC 75-112 | 0.0 руб. | по запросу |
|
| TBLC 75-124 | 15 142 руб. | по запросу |
|
| TBLC 90-112 | 15 847 руб. | по запросу |
|
| TBLC 90-124 | 15 271 руб. | по запросу |
|
This new DIN-Rail mounting power supplies are designed for industrial and residential applications. They are lower cost than the existing TBL range, with similar electrical specifications. Additionally, they fully comply to the new standby power and efficiency requirements (ECO Standard). They are intended for connecting as class II devices, so the safety earth connection is not required. They are mountable in flat racks due to their small dimensions in depth. Their dimensions comply to the DIN 43 880 standard.
Особенности
- High power density in low profile case, module depth only 55 mm
- For distributed power, suitable for mounting in domestic installation panels
- Low output ripples and spikes
- Very high efficiency and low standby current -> compliance to ECO-Standard
- Suitable for household appliance and industrial applications
- UL 1310 class II, NEC class 2 compliance and UL 508 listed
- Universal input range 85 to 264 VAC
- Operating temperature range: –25°C to +70°C max.
- Short circuit and overload protection
- Adjustable output voltage and DC–OK indicator LED
Модельный ряд
| Модель | Мощность | Вход | Выход | Краткое описание |
|---|---|---|---|---|
| TBLC 06-105 | 6 W | 85-264 VAC | 5 VDC (5-5.5 VDC) | 6 Watt AC/DC power supply, household/building automation, 85-264VAC input, 3000 VAC isolation, fits into flat control panels (55 mm depth), DIN-Rail |
| TBLC 06-112 | 6 W | 85-264 VAC | 12 VDC (12-16 VDC) | 6 Watt AC/DC power supply, household/building automation, 85-264VAC input, 3000 VAC isolation, fits into flat control panels (55 mm depth), DIN-Rail |
| TBLC 06-124 | 6 W | 85-264 VAC | 24 VDC (24-28 VDC) | 6 Watt AC/DC power supply, household/building automation, 85-264VAC input, 3000 VAC isolation, fits into flat control panels (55 mm depth), DIN-Rail |
| TBLC 15-105 | 12 W | 85-264 VAC | 5 VDC (5-5.5 VDC) | 15 Watt AC/DC power supply, household/building automation, 85-264VAC input, 3000 VAC isolation, fits into flat control panels (55 mm depth), DIN-Rail |
| TBLC 15-112 | 15 W | 85-264 VAC | 12 VDC (12-16 VDC) | 15 Watt AC/DC power supply, household/building automation, 85-264VAC input, 3000 VAC isolation, fits into flat control panels (55 mm depth), DIN-Rail |
| TBLC 15-124 | 15 W | 85-264 VAC | 24 VDC (24-28 VDC) | 15 Watt AC/DC power supply, household/building automation, 85-264VAC input, 3000 VAC isolation, fits into flat control panels (55 mm depth), DIN-Rail |
| TBLC 25-105 | 20 W | 85-264 VAC | 5 VDC (5-5.5 VDC) | 25 Watt AC/DC power supply, household/building automation, 85-264VAC input, 3000 VAC isolation, fits into flat control panels (55 mm depth), DIN-Rail |
| TBLC 25-112 | 24 W | 85-264 VAC | 12 VDC (12-16 VDC) | 25 Watt AC/DC power supply, household/building automation, 85-264VAC input, 3000 VAC isolation, fits into flat control panels (55 mm depth), DIN-Rail |
| TBLC 25-124 | 25 W | 85-264 VAC | 24 VDC (24-28 VDC) | 25 Watt AC/DC power supply, household/building automation, 85-264VAC input, 3000 VAC isolation, fits into flat control panels (55 mm depth), DIN-Rail |
| TBLC 50-112 | 48 W | 85-264 VAC | 12 VDC (12-16 VDC) | 50 Watt AC/DC power supply, household/building automation, 85-264VAC input, 3000 VAC isolation, fits into flat control panels (55 mm depth), DIN-Rail |
| TBLC 50-124 | 50 W | 85-264 VAC | 24 VDC (24-28 VDC) | 50 Watt AC/DC power supply, household/building automation, 85-264VAC input, 3000 VAC isolation, fits into flat control panels (55 mm depth), DIN-Rail |
| TBLC 75-112 | 72 W | 85-264 VAC | 12 VDC (12-16 VDC) | 75 Watt AC/DC power supply, household/building automation, 85-264VAC input, 3000 VAC isolation, fits into flat control panels (55 mm depth), DIN-Rail |
| TBLC 75-124 | 75 W | 85-264 VAC | 24 VDC (24-28 VDC) | 75 Watt AC/DC power supply, household/building automation, 85-264VAC input, 3000 VAC isolation, fits into flat control panels (55 mm depth), DIN-Rail |
| TBLC 90-112 | 90 W | 85-264 VAC | 12 VDC (12-16 VDC) | 90 Watt AC/DC power supply, household/building automation, 85-264VAC input, 3000 VAC isolation, fits into flat control panels (55 mm depth), DIN-Rail |
| TBLC 90-124 | 90 W | 85-264 VAC | 24 VDC (24-28 VDC) | 90 Watt AC/DC power supply, household/building automation, 85-264VAC input, 3000 VAC isolation, fits into flat control panels (55 mm depth), DIN-Rail |
