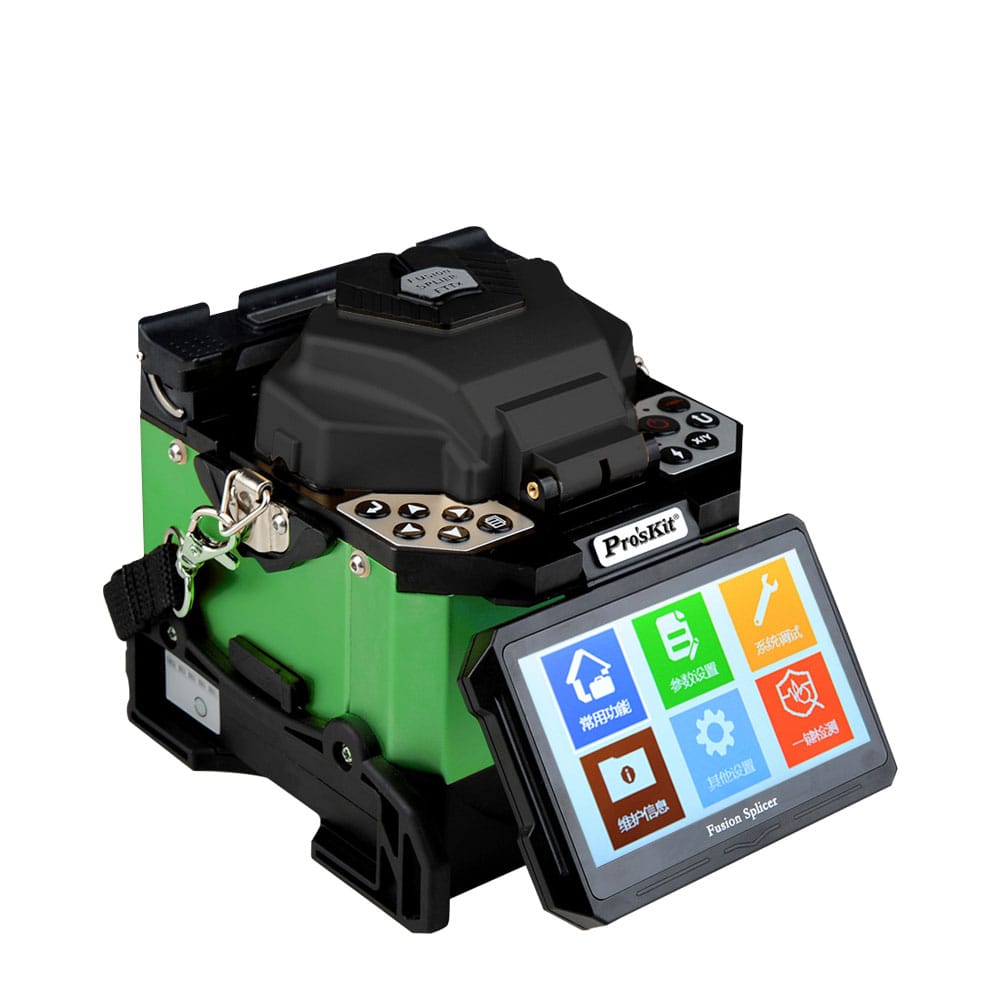

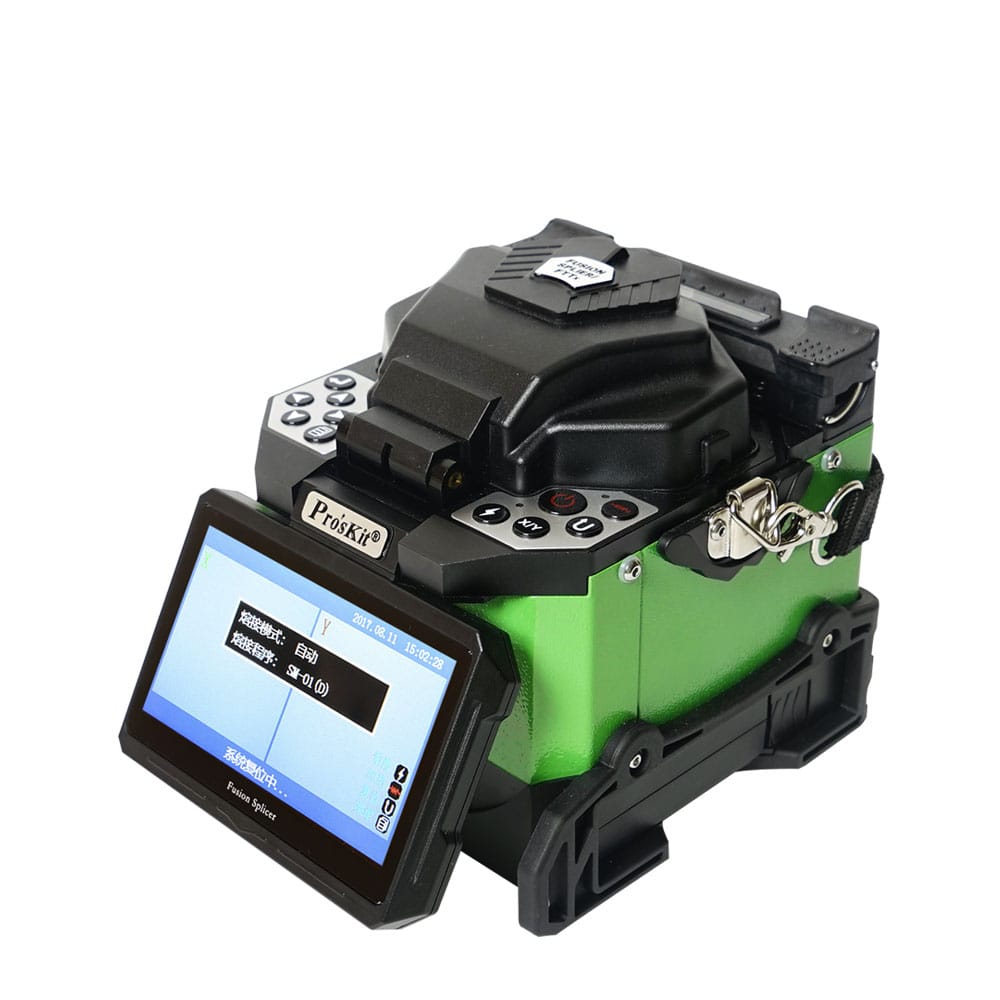

Сшиватель оптоволокна Pro'sKit TE-6201F-W
Цена - по запросу
- Производитель: Pro'sKit
- Модель: TE-6201F-W
- Наличие: Нет в наличии
High Quality Fusion Splicing
Hi-resolution Output
Heat Shrink Protection
Li-ion Battery
Hi-resolution Output
Heat Shrink Protection
Li-ion Battery
High Quality Fusion Splicing
Hi-resolution Output
Heat Shrink Protection
Li-ion Battery
| Model. No | TE-6201F-W |
| Applicable fibers | SM, MM, NZDS, EDF |
| Average splice loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
| Return loss | ≥60dB |
| Splice time (sec.) | 6 sec. (for SM fiber) |
| Diameter of fiber optic | Cladding diameter:80-150μm, Coating diameter:100-1000μm |
| Tension test | 2.0N(200gf)(Standard) |
| Splicing program | 50 groups |
| Electrode life | 5000 times |
| Heat shrinkable tube | 20mm/40mm/60mm |
| Memory capacity | 6000 memories |
| Working light | 1 LED light |
| Battery low indication | 5pcs led light indication |
| Seprately X or Y axis views with 520 times magnification or 200 times for X and Y view | |
| Magnification | |
| Fusion splicing machine, AC adaptor, Battery(in the machine), Spare electrodes, 60mm Shrinkable tube 25pcs, Cooling tray, Quick reference guide, Carrying case with carrying strap | |
| Standard package | |
| Environmental conditions | -10~+50ºC (operation temperature), 0~95% RH(humidity), 0~5000m(altitude) |
| Power supply | AC adaptor: 100~240V input voltage, 50/60Hz; DC15V, 5A |
| Battery | 11.1V 5.2AH |
| LCD display | 4.3” colorful LCD display |
| Charging interface | Micro USB |
| Standard plug | F |
| Dimensions | 145 x 135 x 142mm |
| Weight | 1.7kgs(with battery), 1.35kgs(not included battery) |
| Individual packing | ABS tool box + Color label |
