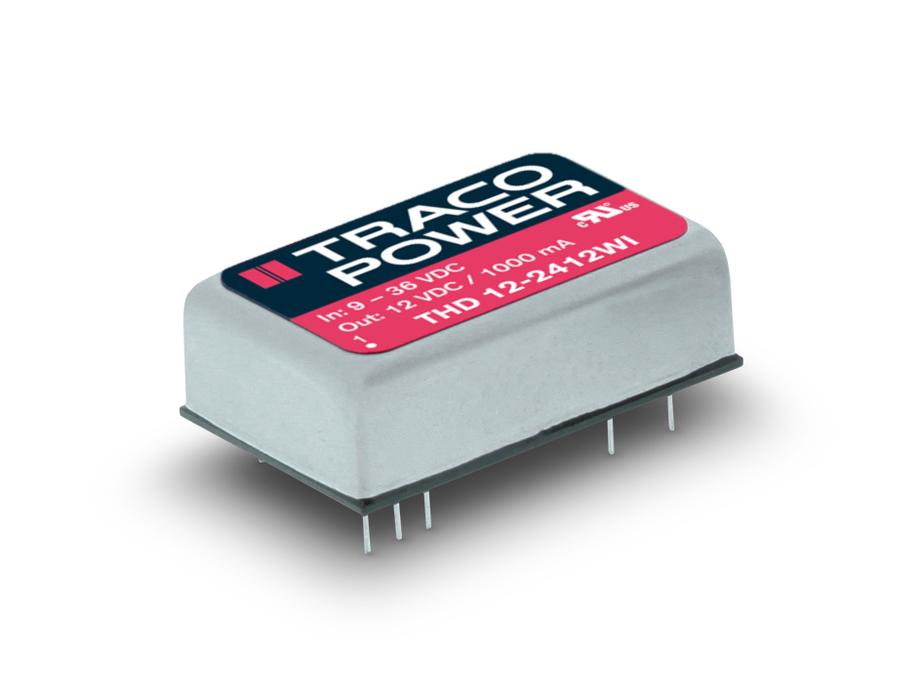

Конвертеры DC/DC Traco Power серия THD 12WI
- от 4 363 руб.
- Производитель: Traco Power
- Модель: THD 12WI
| Модель | Цена | На складе, шт | Количество |
| THD 12-2410WI | 0.0 руб. | по запросу |
|
| THD 12-2411WI | 7 636 руб. | по запросу |
|
| THD 12-2412WI | 7 636 руб. | по запросу |
|
| THD 12-2413WI | 0.0 руб. | по запросу |
|
| THD 12-2421WI | 0.0 руб. | по запросу |
|
| THD 12-2422WI | 0.0 руб. | по запросу |
|
| THD 12-2423WI | 8 038 руб. | по запросу |
|
| THD 12-4810WI | 0.0 руб. | по запросу |
|
| THD 12-4811WI | 4 363 руб. | по запросу |
|
| THD 12-4812WI | 7 636 руб. | по запросу |
|
| THD 12-4813WI | 0.0 руб. | по запросу |
|
| THD 12-4821WI | 0.0 руб. | по запросу |
|
| THD 12-4822WI | 8 038 руб. | по запросу |
|
| THD 12-4823WI | 0.0 руб. | по запросу |
|
The THD 12WI series is a range of high performance, isolated 12W DC/DC converter modules featuring ultra wide 4:1 input voltage ranges in a DIP-24 package with industry-standard footprint. Overload and overvoltage protection as well as remote On/Off are included as standard. Built-in filters for both input and output minimizes the need of external filtering. Full SMD-design with exclusive use of ceramic capacitors guarantees a high reliability and long product lifetime. Typical applications for these converters are industrial electronics, instrumentation, data communication systems and battery operated equipment with limited space available on the PCB.
Особенности
- Ultra-wide 4:1 input range
- High efficiency up to 85%
- I/O isolation 1500V
- Remote On/Off
- Under voltage lock-out circuit
- Shielded metal case with insulated Baseplate
- Continuous short-circuit protection
- Operating temp. range –40°C to +85°C
- 3-year product warranty
Модельный ряд
| Модель | Мощность | Вход | Выход | Краткое описание |
|---|---|---|---|---|
| THD 12-2410WI | 12 W | 9-36 VDC | 3.3 VDC | 12 Watt DC/DC converter, industrial, 4:1 input, encapsulated, DIP-24 |
| THD 12-2411WI | 12 W | 9-36 VDC | 5.1 VDC | 12 Watt DC/DC converter, industrial, 4:1 input, encapsulated, DIP-24 |
| THD 12-2412WI | 12 W | 9-36 VDC | 12 VDC | 12 Watt DC/DC converter, industrial, 4:1 input, encapsulated, DIP-24 |
| THD 12-2413WI | 12 W | 9-36 VDC | 15 VDC | 12 Watt DC/DC converter, industrial, 4:1 input, encapsulated, DIP-24 |
| THD 12-2421WI | 12 W | 9-36 VDC | ±5 VDC | 12 Watt DC/DC converter, industrial, 4:1 input, encapsulated, DIP-24 |
| THD 12-2422WI | 12 W | 9-36 VDC | ±12 VDC | 12 Watt DC/DC converter, industrial, 4:1 input, encapsulated, DIP-24 |
| THD 12-2423WI | 12 W | 9-36 VDC | ±15 VDC | 12 Watt DC/DC converter, industrial, 4:1 input, encapsulated, DIP-24 |
| THD 12-4810WI | 12 W | 18-75 VDC | 3.3 VDC | 12 Watt DC/DC converter, industrial, 4:1 input, encapsulated, DIP-24 |
| THD 12-4811WI | 12 W | 18-75 VDC | 5.1 VDC | 12 Watt DC/DC converter, industrial, 4:1 input, encapsulated, DIP-24 |
| THD 12-4812WI | 12 W | 18-75 VDC | 12 VDC | 12 Watt DC/DC converter, industrial, 4:1 input, encapsulated, DIP-24 |
| THD 12-4813WI | 12 W | 18-75 VDC | 15 VDC | 12 Watt DC/DC converter, industrial, 4:1 input, encapsulated, DIP-24 |
| THD 12-4821WI | 12 W | 18-75 VDC | ±5 VDC | 12 Watt DC/DC converter, industrial, 4:1 input, encapsulated, DIP-24 |
| THD 12-4822WI | 12 W | 18-75 VDC | ±12 VDC | 12 Watt DC/DC converter, industrial, 4:1 input, encapsulated, DIP-24 |
| THD 12-4823WI | 12 W | 18-75 VDC | ±15 VDC | 12 Watt DC/DC converter, industrial, 4:1 input, encapsulated, DIP-24 |
