Конвертеры DC/DC Traco Power серия THR 40WI
- от 16 520 руб.
- Производитель: Traco Power
- Модель: THR 40WI
| Модель | Цена | На складе, шт | Количество |
| THR 40-7211WI | 16 520 руб. | по запросу |
|
| THR 40-7212WI | 16 520 руб. | по запросу |
|
| THR 40-7213WI | 16 520 руб. | по запросу |
|
| THR 40-72154WI | 16 520 руб. | по запросу |
|
| THR 40-7215WI | 16 520 руб. | по запросу |
|
| THR 40-7222WI | 17 318 руб. | по запросу |
|
| THR 40-7223WI | 17 318 руб. | по запросу |
|

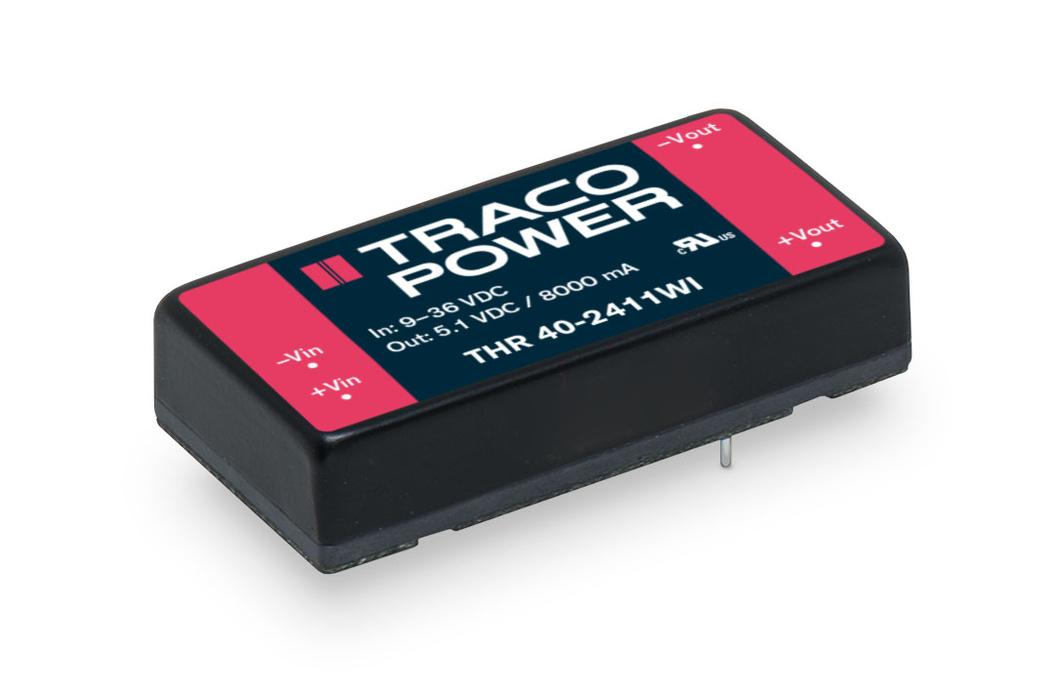

The THR 40WI is 40 Watt DC/DC converters series with reinforced isolation (3000 VAC). These regulated DC/DC converters come in either a 2"x1" package and also feature increased resistance against shock and vibration according to EN 61373. High efficiencies up to 90% allow safe operation from –40°C to +70°C (with derating). All models have a wide 4:1 input voltage range and precisely regulated, isolated output voltages. With the latest IT safety certifications (IEC/EN/UL 62368-1) the THR 40WI series is the perfect choice for many demanding applications in the industrial, transportation and instrumentation sectors.
Особенности
- Reinforced I/O-isolation 3000 VAC
- Shock and vibration resistance according to EN 61373
- Wide 4:1 input voltage range: 36-160 VDC
- Operating temperature range -40 to +80°C
- High efficiency up to 90%
- Protection against overload, overvoltage and short circuit
- 3-year product warranty
Модельный ряд
| Модель | Мощность | Вход | Выход | Краткое описание |
|---|---|---|---|---|
| THR 40-7211WI | 40 W | 36-160 VDC | 5 VDC (4.5-5.5 VDC) | 40 Watt DC/DC converter, industrial, 4:1 input, reinforced isolation (3000 VAC), encapsulated, 2"x1" |
| THR 40-7212WI | 40 W | 36-160 VDC | 12 VDC (10.8-13.2 VDC) | 40 Watt DC/DC converter, industrial, 4:1 input, reinforced isolation (3000 VAC), encapsulated, 2"x1" |
| THR 40-7213WI | 40.1 W | 36-160 VDC | 15 VDC (13.5-16.5 VDC) | 40 Watt DC/DC converter, industrial, 4:1 input, reinforced isolation (3000 VAC), encapsulated, 2"x1" |
| THR 40-7215WI | 40.1 W | 36-160 VDC | 24 VDC (21.6-26.4 VDC) | 40 Watt DC/DC converter, industrial, 4:1 input, reinforced isolation (3000 VAC), encapsulated, 2"x1" |
| THR 40-72154WI | 40 W | 36-160 VDC | 54 VDC (45.9-56.7 VDC) | 40 Watt DC/DC converter, industrial, 4:1 input, reinforced isolation (3000 VAC), encapsulated, 2"x1" |
| THR 40-7222WI | 40 W | 36-160 VDC | ±12 VDC | 40 Watt DC/DC converter, industrial, 4:1 input, reinforced isolation (3000 VAC), encapsulated, 2"x1" |
| THR 40-7223WI | 40 W | 36-160 VDC | ±15 VDC | 40 Watt DC/DC converter, industrial, 4:1 input, reinforced isolation (3000 VAC), encapsulated, 2"x1" |
