Источники питания AC/DC Traco Power серия TPP 15-J
- от 6 988 руб.
- Производитель: Traco Power
- Модель: TPP 15-J
| Модель | Цена | На складе, шт | Количество |
| TPP 15-103-J | 8 048 руб. | по запросу |
|
| TPP 15-105-J | 8 048 руб. | по запросу |
|
| TPP 15-109-J | 7 138 руб. | по запросу |
|
| TPP 15-112-J | 7 138 руб. | по запросу |
|
| TPP 15-115-J | 7 138 руб. | по запросу |
|
| TPP 15-124-J | 6 988 руб. | по запросу |
|
| TPP 15-136-J | 7 223 руб. | по запросу |
|
| TPP 15-148-J | 6 988 руб. | по запросу |
|

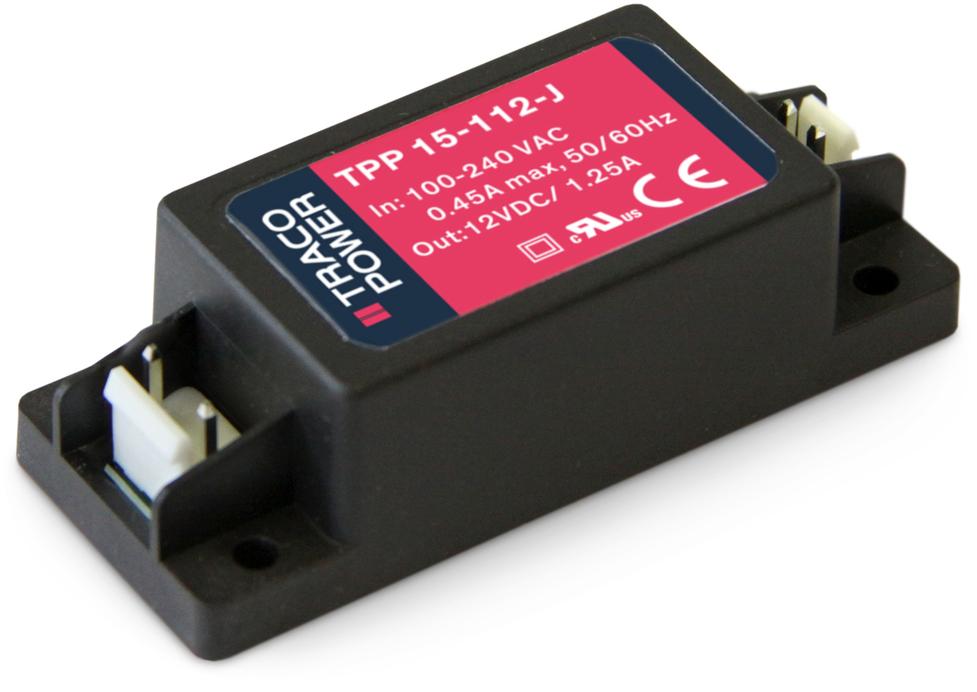

The TPP 15-J AC/DC power supplies feature a reinforced double I/O isolation system according to medical safety standards IEC/EN/ES 60601-1 3rd edition for 2 x MOPP approved for an operating altitude of 5000 m. The earth leakage current is below 75 µA what makes the units suitable for BF (body floating) applications. The excellent efficiency of up to 88.5% offers a high power density in the packaging format 1.1” x 2.8”. The full load operating temperature range covers –40°C to +70°C while it goes up to 85°C with 50% load derating. The units operate in compliance to the medical EMC emission and immunity levels according to latest standard IEC 60601-1-2 4th edition.
Особенности
- High power density power supply (encapsulated)
- Certification according to IEC/EN/ES 60601-1 3rd edition for 2 x MOPP
- Low leakage current <75 µA rated for BF applications
- EMC compliance to IEC 60601-1-2 4th edition
- Risk management process according to ISO 14971 incl. risk management file
- Acceptance criteria for electronic assemblies acc. to IPC-A-610 Level 3
- Protection class ll
- Operating up to 5000 m altitude
- Ready to meet ErP directive, no load power consumption <75 mW
- 5-year product warranty
Модельный ряд
| Модель | Мощность | Вход | Выход | Краткое описание |
|---|---|---|---|---|
| TPP 15-103-J | 13.2 W | 85-264 VAC / 120-370 VDC | 3.3 VDC | 15 Watt AC/DC power supply, medical/industrial/household, 85-264 VAC input, reinforced 4000 VAC isolation, encapsulated, chassis mount (JST) 2.82" x 1.14" |
| TPP 15-105-J | 15 W | 85-264 VAC / 120-370 VDC | 5 VDC | 15 Watt AC/DC power supply, medical/industrial/household, 85-264 VAC input, reinforced 4000 VAC isolation, encapsulated, chassis mount (JST) 2.82" x 1.14" |
| TPP 15-109-J | 15 W | 85-264 VAC / 120-370 VDC | 9 VDC | 15 Watt AC/DC power supply, medical/industrial/household, 85-264 VAC input, reinforced 4000 VAC isolation, encapsulated, chassis mount (JST) 2.82" x 1.14" |
| TPP 15-112-J | 15 W | 85-264 VAC / 120-370 VDC | 12 VDC | 15 Watt AC/DC power supply, medical/industrial/household, 85-264 VAC input, reinforced 4000 VAC isolation, encapsulated, chassis mount (JST) 2.82" x 1.14" |
| TPP 15-115-J | 15 W | 85-264 VAC / 120-370 VDC | 15 VDC | 15 Watt AC/DC power supply, medical/industrial/household, 85-264 VAC input, reinforced 4000 VAC isolation, encapsulated, chassis mount (JST) 2.82" x 1.14" |
| TPP 15-124-J | 15 W | 85-264 VAC / 120-370 VDC | 24 VDC | 15 Watt AC/DC power supply, medical/industrial/household, 85-264 VAC input, reinforced 4000 VAC isolation, encapsulated, chassis mount (JST) 2.82" x 1.14" |
| TPP 15-136-J | 15 W | 85-264 VAC / 120-370 VDC | 36 VDC | 15 Watt AC/DC power supply, medical/industrial/household, 85-264 VAC input, reinforced 4000 VAC isolation, encapsulated, chassis mount (JST) 2.82" x 1.14" |
| TPP 15-148-J | 15 W | 85-264 VAC / 120-370 VDC | 48 VDC | 15 Watt AC/DC power supply, medical/industrial/household, 85-264 VAC input, reinforced 4000 VAC isolation, encapsulated, chassis mount (JST) 2.82" x 1.14" |
