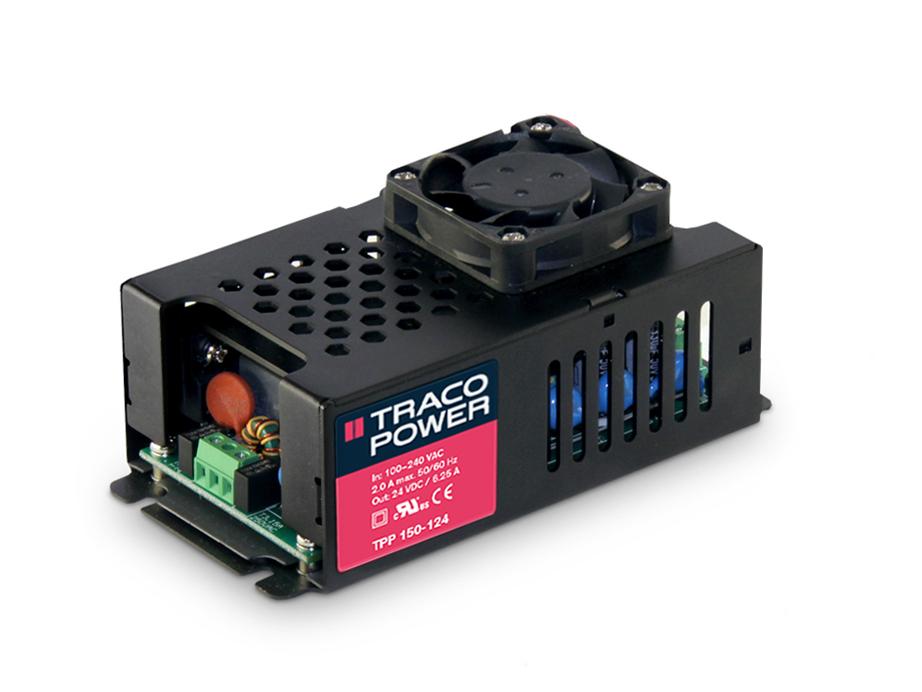

Источники питания AC/DC Traco Power серия TPP 150
- от 19 419 руб.
- Производитель: Traco Power
- Модель: TPP 150
| Модель | Цена | На складе, шт | Количество |
| TPP 150-112 | 19 419 руб. | по запросу |
|
| TPP 150-115 | 19 419 руб. | по запросу |
|
| TPP 150-124 | 0.0 руб. | по запросу |
|
| TPP 150-128 | 0.0 руб. | по запросу |
|
| TPP 150-136 | 0.0 руб. | по запросу |
|
| TPP 150-148 | 0.0 руб. | по запросу |
|
The TPP 150 series of 150 Watt AC/DC encased power supplies feature a reinforced double I/O isolation system according to latest medical safety standards (60601-1 3rd edition, 2 x MOPP). The earth leakage current is below 100 µA which makes the units suitable for BF (body floating) applications. The excellent efficiency of up to 92% allows a high power density for the standard 2.44” x 4.6” packaging format. The full load operating temperature range is –25°C to +70°C while it goes up to 80°C with 40% load derating. The EMC characteristic is dedicated for applications in industrial and domestic mecical fields. High reliability is provided by the use of industrial quality grade components and an excellent thermal management. It makes the products an ideal solution for medical devices and for demanding safety and space critical applications.
Особенности
- Encased 150 W power supply with screw connection 2.44” x 4.6” package
- Certification according to IEC/EN/ES 60601-1 3rd edition for 2 x MOPP
- Low leakage current <100 µA rated for BF applications
- Risk management process according to ISO 14971 incl. risk management file
- Acceptance criteria for electronic assemblies acc. to IPC-A-610 Level 3
- Active power factor correction >0.95
- Protection class l and ll prepared
- Operating up to 5000 m altitude
- 5-year product warranty
Модельный ряд
| Модель | Мощность | Вход | Выход | Краткое описание |
|---|---|---|---|---|
| TPP 150-112 | 150 W | 85-264 VAC / 120-370 VDC | 12 VDC (10.8-13.2 VDC) | 150 Watt AC/DC power supply, medical/industrial, 85-264 VAC input, reinforced 4000 VAC isolation, encased, chassis mount 4" x 2" |
| TPP 150-115 | 150 W | 85-264 VAC / 120-370 VDC | 15 VDC (13.5-16.5 VDC) | 150 Watt AC/DC power supply, medical/industrial, 85-264 VAC input, reinforced 4000 VAC isolation, encased, chassis mount 4" x 2" |
| TPP 150-124 | 150 W | 85-264 VAC / 120-370 VDC | 24 VDC (21.6-26.4 VDC) | 150 Watt AC/DC power supply, medical/industrial, 85-264 VAC input, reinforced 4000 VAC isolation, encased, chassis mount 4" x 2" |
| TPP 150-128 | 150 W | 85-264 VAC / 120-370 VDC | 28 VDC (25.2-30.8 VDC) | 150 Watt AC/DC power supply, medical/industrial, 85-264 VAC input, reinforced 4000 VAC isolation, encased, chassis mount 4" x 2" |
| TPP 150-136 | 150 W | 85-264 VAC / 120-370 VDC | 36 VDC (32.4-39.6 VDC) | 150 Watt AC/DC power supply, medical/industrial, 85-264 VAC input, reinforced 4000 VAC isolation, encased, chassis mount 4" x 2" |
| TPP 150-148 | 150 W | 85-264 VAC / 120-370 VDC | 48 VDC (43.2-52.8 VDC) | 150 Watt AC/DC power supply, medical/industrial, 85-264 VAC input, reinforced 4000 VAC isolation, encased, chassis mount 4" x 2" |
