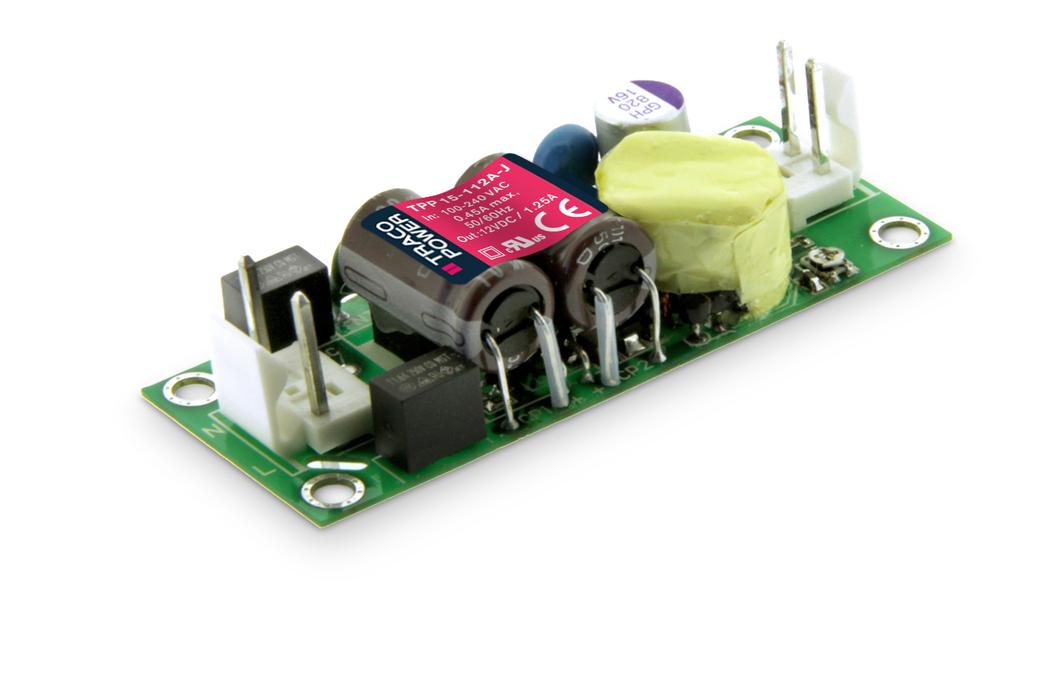

Источники питания AC/DC Traco Power серия TPP 15A-J

  • от 4 616 руб.
  • Производитель: Traco Power
  • Модель: TPP 15A-J

0 отзывов / Написать отзыв

Модель Цена На складе, шт Количество
TPP 15-103A-J 6 830 руб. по запросу
TPP 15-105A-J 6 830 руб. по запросу
TPP 15-109A-J 5 929 руб. по запросу
TPP 15-112A-J 5 929 руб. по запросу
TPP 15-115A-J 5 929 руб. по запросу
TPP 15-124A-J 5 770 руб. по запросу
TPP 15-136A-J 5 770 руб. по запросу
TPP 15-148A-J 4 616 руб. по запросу

The TPP 15A-J AC/DC power supplies feature a reinforced double I/O isolation system according to medical safety standards IEC/EN/ES 60601-1 3rd edition for 2 x MOPP approved for an operating altitude of 5000 m. The earth leakage current is below 75 µA what makes the units suitable for BF (body floating) applications. The excellent efficiency of up to 89% offers a high power density in the packaging format 1.0” x 2.6”. The full load operating temperature range covers –40°C to +60°C while it goes up to 85°C with 50% load derating. The units operate in compliance to the medical EMC emission and immunity levels according to latest standard IEC 60601-1-2 4th edition.

Особенности

  • High power density power supply (open frame)
  • Certification according to IEC/EN/ES 60601-1 3rd edition for 2 x MOPP
  • Low leakage current <75 µA rated for BF applications
  • EMC compliance to IEC 60601-1-2 4th edition
  • Risk management process according to ISO 14971 incl. risk management file
  • Acceptance criteria for electronic assemblies acc. to IPC-A-610 Level 3
  • Protection class l and II
  • Operating up to 5000 m altitude
  • Ready to meet ErP directive, no load power consumption <75 mW
  • 5-year product warranty

Модельный ряд

МодельМощностьВходВыходКраткое описание
TPP 15-103A-J13.2 W85-264 VAC / 120-370 VDC3.3 VDC
(2.97-3.63 VDC)		15 Watt AC/DC power supply, medical/industrial/household, 85-264 VAC input, reinforced 4000 VAC isolation, openframe, chassis mount (JST) 2.6" x 1.0"
TPP 15-105A-J15 W85-264 VAC / 120-370 VDC5 VDC
(4.5-5.5 VDC)		15 Watt AC/DC power supply, medical/industrial/household, 85-264 VAC input, reinforced 4000 VAC isolation, openframe, chassis mount (JST) 2.6" x 1.0"
TPP 15-109A-J15 W85-264 VAC / 120-370 VDC9 VDC
(8.1-9.9 VDC)		15 Watt AC/DC power supply, medical/industrial/household, 85-264 VAC input, reinforced 4000 VAC isolation, openframe, chassis mount (JST) 2.6" x 1.0"
TPP 15-112A-J15 W85-264 VAC / 120-370 VDC12 VDC
(10.8-13.2 VDC)		15 Watt AC/DC power supply, medical/industrial/household, 85-264 VAC input, reinforced 4000 VAC isolation, openframe, chassis mount (JST) 2.6" x 1.0"
TPP 15-115A-J15 W85-264 VAC / 120-370 VDC15 VDC
(13.5-16.5 VDC)		15 Watt AC/DC power supply, medical/industrial/household, 85-264 VAC input, reinforced 4000 VAC isolation, openframe, chassis mount (JST) 2.6" x 1.0"
TPP 15-124A-J15 W85-264 VAC / 120-370 VDC24 VDC
(21.6-26.4 VDC)		15 Watt AC/DC power supply, medical/industrial/household, 85-264 VAC input, reinforced 4000 VAC isolation, openframe, chassis mount (JST) 2.6" x 1.0"
TPP 15-136A-J15 W85-264 VAC / 120-370 VDC36 VDC
(32.4-39.6 VDC)		15 Watt AC/DC power supply, medical/industrial/household, 85-264 VAC input, reinforced 4000 VAC isolation, openframe, chassis mount (JST) 2.6" x 1.0"
TPP 15-148A-J15 W85-264 VAC / 120-370 VDC48 VDC
(43.2-52.8 VDC)		15 Watt AC/DC power supply, medical/industrial/household, 85-264 VAC input, reinforced 4000 VAC isolation, openframe, chassis mount (JST) 2.6" x 1.0"
