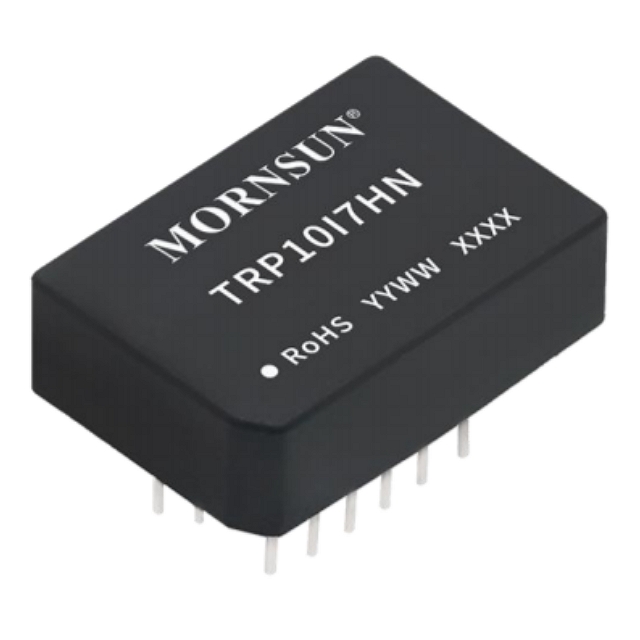

Mornsun Разделительный усилитель TRP10I7HN
Цена - по запросу
- Производитель: Mornsun
- Модель: TRP10I7HN
- Наличие: Нет в наличии
Особенности
TRP10I7HN is an isolated temperature measurement module product used to detect PT100 thermal resistance. It can be used in industrial thermostats, temperature measuring instruments, petrochemicals, power temperature monitoring and other fields. The product can convert the on-site thermal resistance signal into IIC digital signal, and then use the standard IIC interface to output temperature data directly, so as to realize the on-site temperature signal collection and transmission. At the same time, the product with independent power supply, and the input and output are isolated from each other. In addition, this series of products have the function of two-way PT100 thermal resistance signal acquisition, and adopt a small volume design to meet the needs of on-site high-density installation.
Технические характеристики
| Модель | TRP10I7HN |
| Тип входного сигнала | Pt100 |
| Тип входного сигнала | Heat resistance |
| Тип выходного сигнала | IIC信号 |
| Программируемый | - |
| Field Signal | - |
| Количество каналов | 2 |
| Входное напряжение, В (VDC) | 3.3 |
| Выходное напряжение, В (VDC) | - |
Гарантия
У нас вы можете получить онлайн-консультацию по выбору и комплектации, инструмента.
Обмен и возврат товара осуществляется в соответствии с положениями Закона о защите прав потребителей. Адрес точки приёма: 192019, г. Санкт-Петербург, ул. Смоляная, д.15, лит. А, пом. 24.
- Информация о гарантии производителя
- Найти сервисный центр по ремонту инструмента
- Сертификаты продавца/производителя
ETK-396405
