Конвертеры DC/DC Traco Power серия TSRN 1SM
- от 2 067 руб.
- Производитель: Traco Power
- Модель: TSRN 1SM
| Модель | Цена | На складе, шт | Количество |
| TSRN 1-0525SM | 0.0 руб. | по запросу |
|
| TSRN 1-24120SM | 0.0 руб. | по запросу |
|
| TSRN 1-24150SM | 2 269 руб. | по запросу |
|
| TSRN 1-2433SM | 2 067 руб. | по запросу |
|
| TSRN 1-2450SM | 2 067 руб. | по запросу |
|
| TSRN 1-2490SM | 2 176 руб. | по запросу |
|

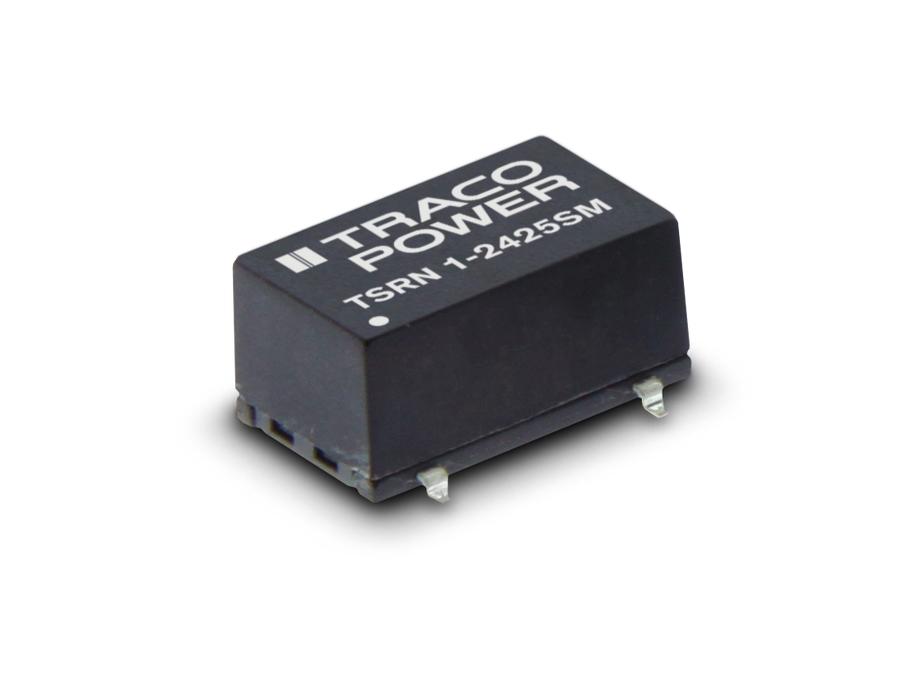

The new TSRN 1SM series are step-down non–isolated switching regulators in compact SMD package. They are an ideal solution to replace inefficient linear regulators. The high efficiency up to 95% allows full load operation up to +55°C (+85°C with derating) ambient temperature without the need of forced air cooling.
The TSRN-1SM switching regulators provide other significant features over linear regulators, i.e. better output accuracy (±2%), lower standby current of ~4 mA and no requirement of external capacitors. They are suitable for positive or negative output circuits and offer a trim input for output voltage adjustment. The high efficiency, low standby power consumption and remote On/Off function make these regulators an ideal solution for energy sensitive applications.
Особенности
- Compact SMD package
- Suitable for positive & negative output circuit
- Adjustable output voltage
- Wide input up to 42 VDC
- Remote On/Off input
- Built in filter capacitors
- Operation temp. range –40°C to +85°C
- Excellent line/load regulation
- Low standby current
- 3-year product warranty
Модельный ряд
| Модель | Мощность | Вход | Выход | Краткое описание |
|---|---|---|---|---|
| TSRN 1-0525SM | 1000 mA | 3-5.5 VDC | 2.5 VDC (1.2-3.63 VDC) | 1 Amp POL switching regulator, wide input range, pos.-neg. circuit, SMD package |
| TSRN 1-2433SM | 1000 mA | 4.6-42 VDC | 3.3 VDC (1.5-5.5 VDC) | 1 Amp POL switching regulator, wide input range, pos.-neg. circuit, SMD package |
| TSRN 1-2450SM | 1000 mA | 6.5-42 VDC | 5 VDC (2.5-8 VDC) | 1 Amp POL switching regulator, wide input range, pos.-neg. circuit, SMD package |
| TSRN 1-2490SM | 1000 mA | 10.5-42 VDC | 9 VDC (4.5-12.6 VDC) | 1 Amp POL switching regulator, wide input range, pos.-neg. circuit, SMD package |
| TSRN 1-24120SM | 1000 mA | 13.5-42 VDC | 12 VDC (4.5-13.5 VDC) | 1 Amp POL switching regulator, wide input range, pos.-neg. circuit, SMD package |
| TSRN 1-24150SM | 1000 mA | 16.5-42 VDC | 15 VDC (4.5-15.5 VDC) | 1 Amp POL switching regulator, wide input range, pos.-neg. circuit, SMD package |
