Источники питания AC/DC Traco Power серия TXH
- от 19 327 руб.
- Производитель: Traco Power
- Модель: TXH
| Модель | Цена | На складе, шт | Количество |
| TXH 120-112 | 19 327 руб. | по запросу |
|
| TXH 120-124 | 19 327 руб. | по запросу |
|
| TXH 120-148 | 19 327 руб. | по запросу |
|
| TXH 240-112 | 24 824 руб. | по запросу |
|
| TXH 240-124 | 24 824 руб. | по запросу |
|
| TXH 240-148 | 24 824 руб. | по запросу |
|
| TXH 360-112 | 39 992 руб. | по запросу |
|
| TXH 360-124 | по запросу | по запросу |
|
| TXH 360-148 | по запросу | по запросу |
|
| TXH 480-112 | 57 960 руб. | по запросу |
|
| TXH 480-124 | 57 960 руб. | по запросу |
|
| TXH 480-148 | по запросу | по запросу |
|

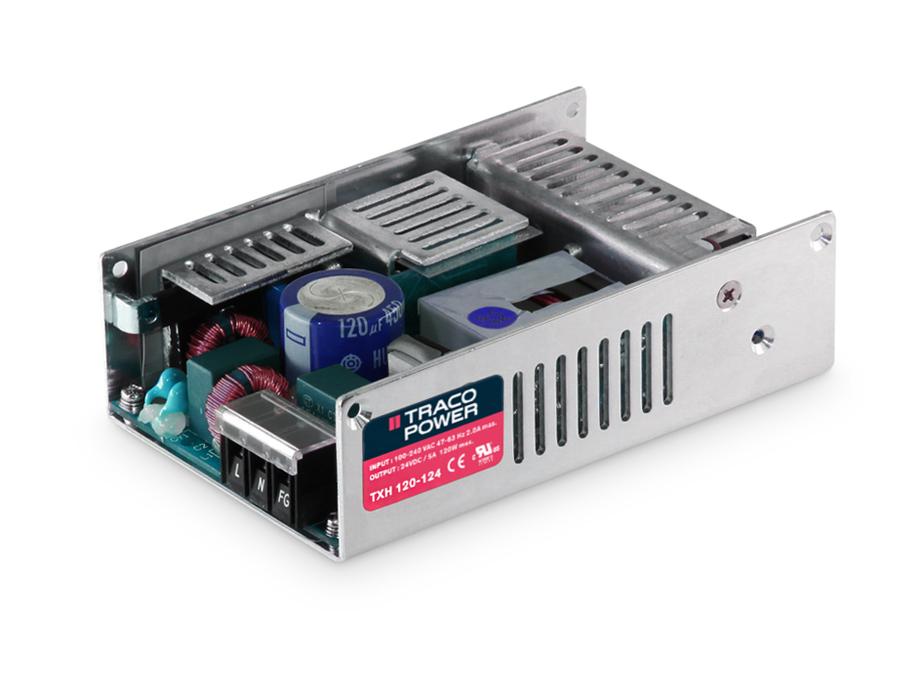

The TXH series is a family of power supplies in metal enclosure, designed for a wide range of cost critical applications. The very high efficiency of up to 93% admits of a compact design with free air convection cooling for the 120 and 240 Watt models. The units are equipped with screw terminal blocks and are easy to install in any equipment. These power supplies have universal input and comply with European EMC standards and the Low Voltage Directive (LVD).terminal block connection, they are easy to install in any equipment. There are 40 models with single output voltages from 3.3 VDC to 48 VDC in 9 power ranges from 15 W to 320 W. These power supplies have universal input and comply with European EMC standards and the Low Voltage Directive (LVD).
Особенности
- Compact U-bracket and enclosed power supplies
- Screw terminal block
- Very high efficiency up to 93 %
- No internal fan for 120 W & 240 W models.
- Universal input 90 – 264 VAC
- Adjustable output voltage
- EMI/EMC compliance with EN 61000-6-3 and EN 61000-6-1
- Compliance to EN 61000-3-2 (PFC)
- Short circuit and overvoltage protection
Модельный ряд
| Модель | Мощность | Вход | Выход | Краткое описание |
|---|---|---|---|---|
| TXH 120-112 | 120 W | 90-264 VAC / 120-370 VDC | 12 VDC (11.4-13.2 VDC) | 120 Watt AC/DC, industrial, 85-264 VAC input, 3000 VAC isolation, encased, chassis mount, U-Bracket metal case style |
| TXH 120-124 | 120 W | 90-264 VAC / 120-370 VDC | 24 VDC (22.8-26.4 VDC) | 120 Watt AC/DC, industrial, 85-264 VAC input, 3000 VAC isolation, encased, chassis mount, U-Bracket metal case style |
| TXH 120-148 | 120 W | 90-264 VAC / 120-370 VDC | 48 VDC (45.6-52 VDC) | 120 Watt AC/DC, industrial, 85-264 VAC input, 3000 VAC isolation, encased, chassis mount, U-Bracket metal case style |
| TXH 240-112 | 240 W | 90-264 VAC / 120-370 VDC | 12 VDC (11.4-12.6 VDC) | 240 Watt AC/DC, industrial, 85-264 VAC input, 3000 VAC isolation, encased, chassis mount, U-Bracket metal case style |
| TXH 240-124 | 240 W | 90-264 VAC / 120-370 VDC | 24 VDC (22.8-25.2 VDC) | 240 Watt AC/DC, industrial, 85-264 VAC input, 3000 VAC isolation, encased, chassis mount, U-Bracket metal case style |
| TXH 240-148 | 240 W | 90-264 VAC / 120-370 VDC | 48 VDC (45.6-50.4 VDC) | 240 Watt AC/DC, industrial, 85-264 VAC input, 3000 VAC isolation, encased, chassis mount, U-Bracket metal case style |
| TXH 360-112 | 360 W | 90-264 VAC / 120-370 VDC | 12 VDC (10.8-13.2 VDC) | 360 Watt AC/DC, industrial, 85-264 VAC input, 3000 VAC isolation, encased, chassis mount, U-Bracket metal case style |
| TXH 360-124 | 360 W | 90-264 VAC / 120-370 VDC | 24 VDC (21.6-26.4 VDC) | 360 Watt AC/DC, industrial, 85-264 VAC input, 3000 VAC isolation, encased, chassis mount, U-Bracket metal case style |
| TXH 360-148 | 360 W | 90-264 VAC / 120-370 VDC | 48 VDC (44-51 VDC) | 360 Watt AC/DC, industrial, 85-264 VAC input, 3000 VAC isolation, encased, chassis mount, U-Bracket metal case style |
| TXH 480-112 | 480 W | 90-264 VAC / 120-370 VDC | 12 VDC (10.8-13.2 VDC) | 480 Watt AC/DC, industrial, 85-264 VAC input, 3000 VAC isolation, encased, chassis mount, U-Bracket metal case style |
| TXH 480-124 | 480 W | 90-264 VAC / 120-370 VDC | 24 VDC (21.6-26.4 VDC) | 480 Watt AC/DC, industrial, 85-264 VAC input, 3000 VAC isolation, encased, chassis mount, U-Bracket metal case style |
| TXH 480-148 | 480 W | 90-264 VAC / 120-370 VDC | 48 VDC (43.2-50.4 VDC) | 480 Watt AC/DC, industrial, 85-264 VAC input, 3000 VAC isolation, encased, chassis mount, U-Bracket metal case style |
