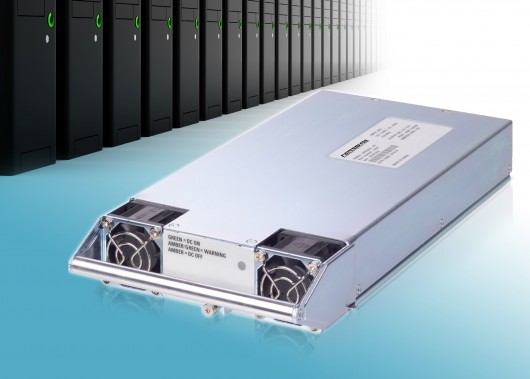

UFE1300-5 (1300W 24V bulk supply) Artesyn 1300-2000 Watt Front End AC-DC Power Supplies

  • Цена - по запросу

Outputs
24 V @ 48 A

The UFE series of bulk front end AC-DC power supplies comprises one single output 24 V model and six single output 48 V models. The 24 V model accepts a wide range 90–264 Vac input and is rated at 1,300 watts. The 48 V models are available with a choice of 90-264 Vac input and 1,300 watt output ratings, or 180-264 Vac input and 2000 watt output. All models also provide an 11 V standby output. The main output is floating as well as isolated, allowing positive or negative polarity operation. Standard features include built-in ORing devices and active current sharing. Less than 1U high, UFE series power supplies are ideal for telecommunications, data communications and industrial applications.

Особенности

  • Active Power Factor Correction
  • Active AC Inrush limit Control
  • High Density (22W/cu-in)
  • UFR rack allows for 6 Kw in a 1U 19" form factor
  • High Efficiency up to 91%
  • No Min Load required
  • Standard 11.0 V at 2.8 W standby voltage
  • Hot Plug Operation
  • Active or Droop current sharing
  • Smart Fan Speed control
  • PMBus or IPMI compliant with I2C interface

Технические характеристики

  • Total Max Power:
    2,000 W
  • Total Max Current:
    48 A
  • Input Voltage:
    90 V to 264 V
  • Output Voltage:
    21 V to 57 V
  • Outputs:
    Single
  • Size (L x W x H):
    10.740" x 5.560" x 1.600"
  • Warranty:
    2 years
  • Operating Temperature:
    -33°C to +70°C

Electrical Specifications

  • Input
  • Output
  • Logic Control
  • Input Frequency: 47 - 63 Hz
  • Leakage Current: 2 mA max
  • EMI/RFI: Class B (when installed in UFR Rack)
  • Power Factor (>50%): 0.98
  • Input Range (2000W Max): 175 - 264 VAC
  • Input Current: 15 A max
  • Effiency: Up to 91%
  • Turn-on Delay: < 5 Sec max
  • Line and Load Regulation: +/- 0.15%
  • Set Point Accuracy: +/- 0.5%
  • Temperature Coefficient: +/ -0.005%/°C
  • Input Range (1300W Max): 90 - 264 VAC
  • Output Voltabe (24V): 21 - 28.5 VDC @ 48 A
  • Output Voltage (48V): 42 - 57 VDC @ 41 A
  • Digital Control: PMBus or IPMI through I2C
