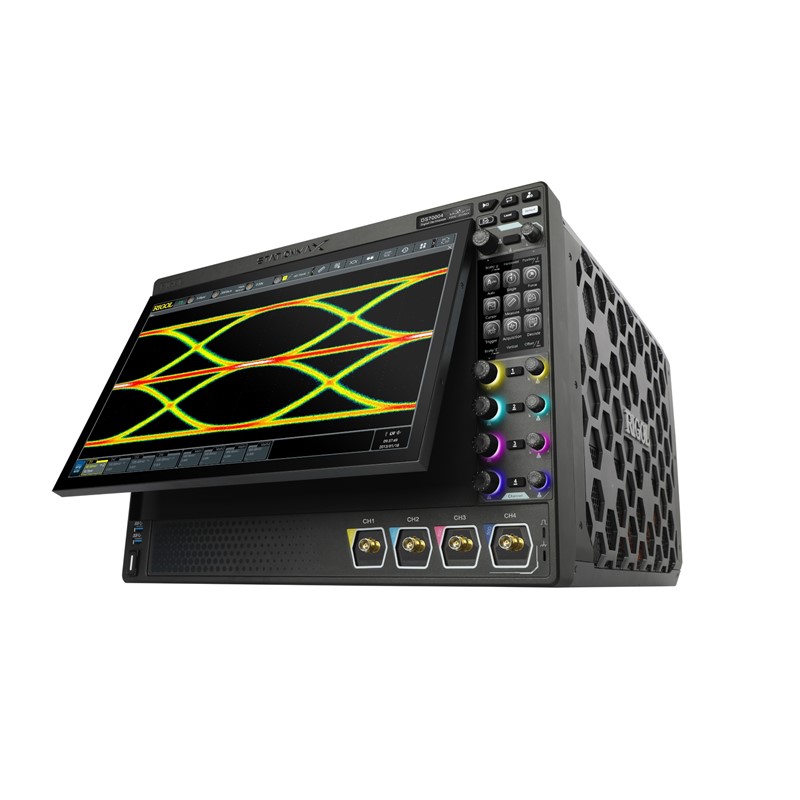

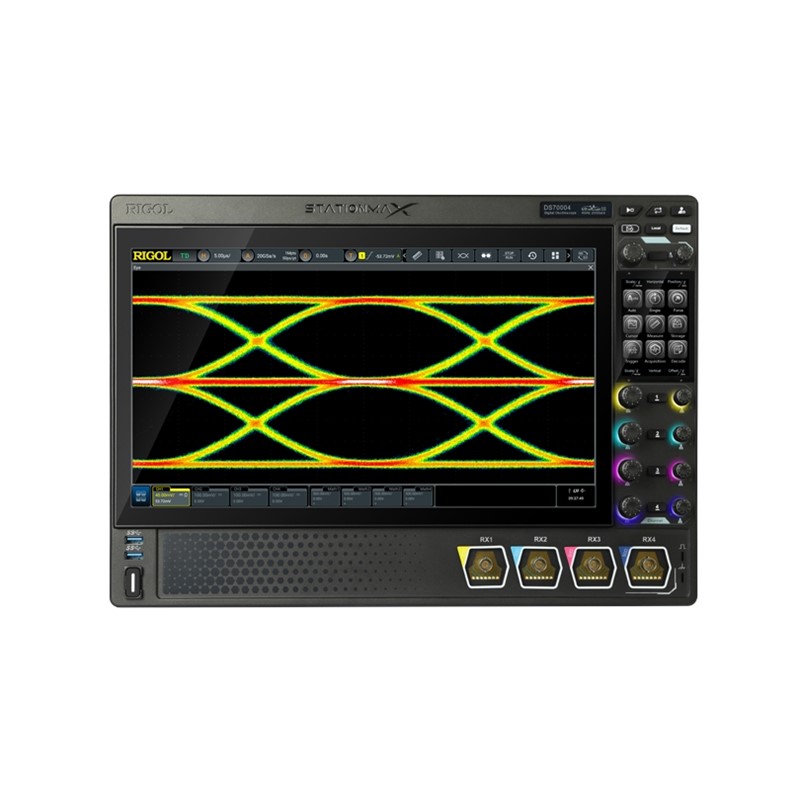

Цифровой осциллограф StationMax Rigol DS70504

RIGOL’s DS70000 series oscilloscope integrates 5 independent instruments into 1 including a digital oscilloscope, one spectrum analyzer, one digital voltmeter, one high precision frequency counter and totalizer, and one protocol analyzer. The DS70000 series provides a comprehensive instrument that meets your actual test needs.

Digital Oscilloscope

• Bandwidth model: 5 GHz
• Up to 20 GSa/s real-time sample rate
• 4 analog channels and 1 EXT channel
• Up to 2 Gpts memory depth
• Maximum waveform capture rate of 1,000,000 wfms/s

Digital Voltmeter

• 3-digit DC/ACRMS, AC+DCRMS voltage measurement
• Sounds an alarm for reaching or exceeding the limits

High-precision Frequency Counter and Totalizer

• 3 to 8-digit (selectable) high-precision frequency counter
• Supports the statistics on the maximum and minimum values of the frequency
• 48-bit totalizer (standard)

Real-Time Spectrum Analyzer (Option)

• Standard configuration of enhanced FFT, real-time operation for max. 16 Mpts waveform data
• Max. frequency range: oscilloscope analog bandwidth
• Up to 4 groups of operations can be displayed at the same time
• Independent FFT color persistence view supported
• Up to 15 peaks available for the peak search function; event table available to be exported

Protocol Analyzer (Option)

• Supports RS232/UART, I2C, SPI, CAN, LIN, I2S, FlexRay, and MIL-STD-1553 serial bus
• Supports analog channel trigger and decoding
• Works with waveform recording and pass/fail mask testing
