Конвертеры DC/DC Traco Power серия TEN 40WI
- от 17 804 руб.
- Производитель: Traco Power
- Модель: TEN 40WI
| Модель | Цена | На складе, шт | Количество |
| TEN 40-2410WI | 0.0 руб. | по запросу |
|
| TEN 40-2411WI | 0.0 руб. | по запросу |
|
| TEN 40-2412WI | 17 804 руб. | по запросу |
|
| TEN 40-2413WI | 0.0 руб. | по запросу |
|
| TEN 40-2422WI | 18 777 руб. | по запросу |
|
| TEN 40-2423WI | 18 777 руб. | по запросу |
|
| TEN 40-4810WI | 0.0 руб. | по запросу |
|
| TEN 40-4811WI | 0.0 руб. | по запросу |
|
| TEN 40-4812WI | 0.0 руб. | по запросу |
|
| TEN 40-4813WI | 0.0 руб. | по запросу |
|
| TEN 40-4822WI | 0.0 руб. | по запросу |
|
| TEN 40-4823WI | 0.0 руб. | по запросу |
|

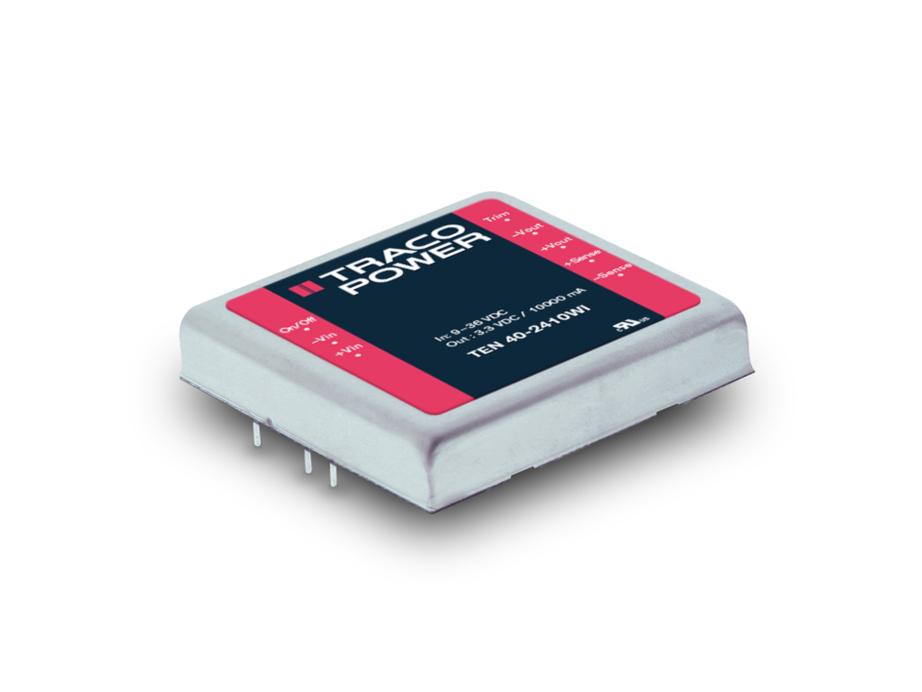

The TEN 40WI series is a family of high performance 40W DC/DC converter modules featuring ultra wide 4:1 input voltage ranges in a compact low profile case with industry-standard footprint. A very high efficiency allows an operating temperature range of –40°C to 85°C. Further standard features include remote On/Off, output voltage trimming, over voltage protection, under voltage lockout, over temperature and short circuit protection. Typical applications for these products are battery operated equipment and distributed power architectures in communication and industrial electronics, everywhere where isolated, tightly regulated voltages are required and space is limited on the PCB.
Особенности
- High power density: 40W in
2”x2”x0.4” metal package - Ultra wide 4:1 input voltage range
- Very high efficiency up to 89 %
- No minimum load required for single output models
- Over temperature protection
- Under voltage lockout
- Remote On/Off
- Shielded metal case with insulated baseplate
- Optional heat-sink
- 3-year product warranty
Модельный ряд
| Модель | Мощность | Вход | Выход | Краткое описание |
|---|---|---|---|---|
| TEN 40-2410WI | 40 W | 9-36 VDC | 3.3 VDC (2.97-3.63 VDC) | 40 Watt DC/DC converter, industrial, 4:1 input, encapsulated, 2" x 2" metal package |
| TEN 40-2411WI | 40 W | 9-36 VDC | 5 VDC (4.5-5.5 VDC) | 40 Watt DC/DC converter, industrial, 4:1 input, encapsulated, 2" x 2" metal package |
| TEN 40-2412WI | 40 W | 9-36 VDC | 12 VDC (10.8-13.2 VDC) | 40 Watt DC/DC converter, industrial, 4:1 input, encapsulated, 2" x 2" metal package |
| TEN 40-2413WI | 40 W | 9-36 VDC | 15 VDC (13.5-16.5 VDC) | 40 Watt DC/DC converter, industrial, 4:1 input, encapsulated, 2" x 2" metal package |
| TEN 40-2422WI | 40 W | 9-36 VDC | ±12 VDC (10.8-13.2 VDC) | 40 Watt DC/DC converter, industrial, 4:1 input, encapsulated, 2" x 2" metal package |
| TEN 40-2423WI | 40 W | 9-36 VDC | ±15 VDC (13.5-16.5 VDC) | 40 Watt DC/DC converter, industrial, 4:1 input, encapsulated, 2" x 2" metal package |
| TEN 40-4810WI | 40 W | 18-75 VDC | 3.3 VDC (2.97-3.63 VDC) | 40 Watt DC/DC converter, industrial, 4:1 input, encapsulated, 2" x 2" metal package |
| TEN 40-4811WI | 40 W | 18-75 VDC | 5 VDC (4.5-5.5 VDC) | 40 Watt DC/DC converter, industrial, 4:1 input, encapsulated, 2" x 2" metal package |
| TEN 40-4812WI | 40 W | 18-75 VDC | 12 VDC (10.8-13.2 VDC) | 40 Watt DC/DC converter, industrial, 4:1 input, encapsulated, 2" x 2" metal package |
| TEN 40-4813WI | 40 W | 18-75 VDC | 15 VDC (13.5-16.5 VDC) | 40 Watt DC/DC converter, industrial, 4:1 input, encapsulated, 2" x 2" metal package |
| TEN 40-4822WI | 40 W | 18-75 VDC | ±12 VDC (10.8-13.2 VDC) | 40 Watt DC/DC converter, industrial, 4:1 input, encapsulated, 2" x 2" metal package |
| TEN 40-4823WI | 40 W | 18-75 VDC | ±15 VDC (13.5-16.5 VDC) | 40 Watt DC/DC converter, industrial, 4:1 input, encapsulated, 2" x 2" metal package |
