Конвертеры DC/DC Traco Power серия THL 15WI
- от 4 952 руб.
- Производитель: Traco Power
- Модель: THL 15WI
| Модель | Цена | На складе, шт | Количество |
| THL 15-2410WI | 5 235 руб. | по запросу |
|
| THL 15-2411WI | 5 235 руб. | по запросу |
|
| THL 15-2412WI | 5 015 руб. | по запросу |
|
| THL 15-2413WI | 4 952 руб. | по запросу |
|
| THL 15-2415WI | 4 952 руб. | по запросу |
|
| THL 15-2422WI | 5 235 руб. | по запросу |
|
| THL 15-2423WI | 5 235 руб. | по запросу |
|
| THL 15-4810WI | 5 235 руб. | по запросу |
|
| THL 15-4811WI | 5 307 руб. | по запросу |
|
| THL 15-4812WI | 4 952 руб. | по запросу |
|
| THL 15-4813WI | 0.0 руб. | по запросу |
|
| THL 15-4815WI | 4 952 руб. | по запросу |
|
| THL 15-4822WI | 5 235 руб. | по запросу |
|
| THL 15-4823WI | 5 235 руб. | по запросу |
|

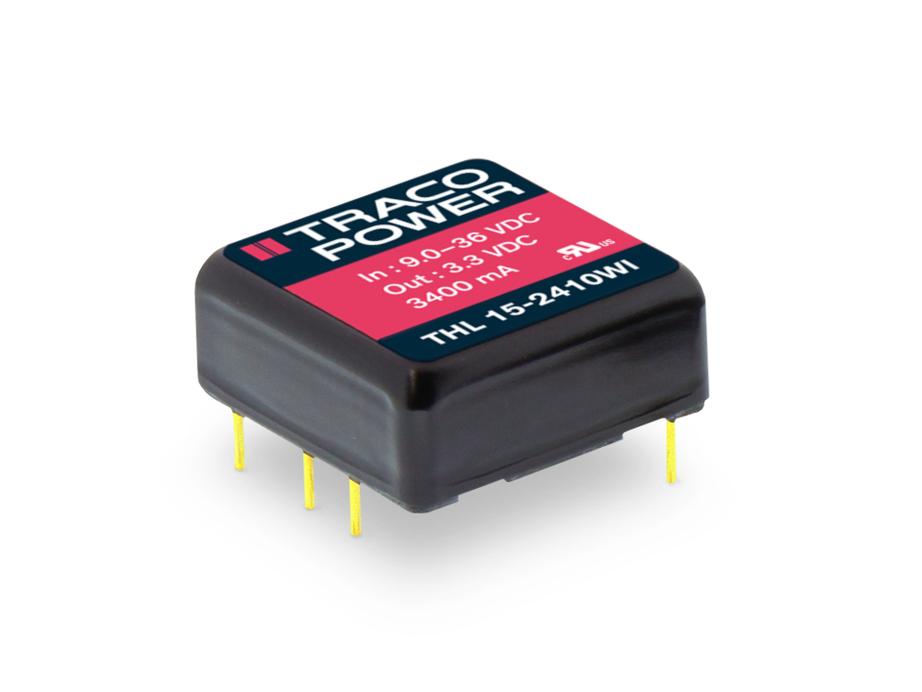

The THL 15WI series is Traco Power's latest addition to the existing 15 Watt DC/DC converter range. With the focus on combining cost efficiency and quality this isolated high performance 15 Watt DC/DC converter is suitable for many different applications. The series comes in an encapsulated, shielded 1" x 1" x 0.4" metal package and has a fully integrated EN 55032 class A filter. High efficiency up to 91% enables the converter to operate from –40°C to +70°C without derating. All models have an ultra wide 4:1 input voltage range and precisely regulated, isolated outputs. The series meets the latest IT safety certifications (UL 62368-1) and is thus eligible for uses in mobile equipment, instrumentation, distributed power architectures in communication and industrial electronics and everywhere where cost efficiency and quality are critical factors.
Особенности
- 15 Watt converter in a 1" x 1" metal package
- Cost efficient design
- Ultra wide 4:1 input voltage range:
9-36 and 18-75 VDC - Operating temperature range
-40 to +70 °C without derating - Internal EN 55032 class A filter
- 1'500 VDC I/O-isolation
- Protection against overvoltage,
overload and short circuit - Remote On/Off and trim function
- Optional heatsink for increased temperature capabilities
- 3-year product warranty
Модельный ряд
| Модель | Мощность | Вход | Выход | Краткое описание |
|---|---|---|---|---|
| THL 15-2410WI | 11.2 W | 9-36 VDC | 3.3 VDC (2.97-3.63 VDC) | 15 Watt DC/DC converter, industrial, 4:1 input, cost efficient design, encapsulated, 1" x 1" metal package |
| THL 15-2411WI | 15 W | 9-36 VDC | 5 VDC (4.5-5.5 VDC) | 15 Watt DC/DC converter, industrial, 4:1 input, cost efficient design, encapsulated, 1" x 1" metal package |
| THL 15-2412WI | 15 W | 9-36 VDC | 12 VDC (10.8-13.2 VDC) | 15 Watt DC/DC converter, industrial, 4:1 input, cost efficient design, encapsulated, 1" x 1" metal package |
| THL 15-2413WI | 15 W | 9-36 VDC | 15 VDC (13.5-16.5 VDC) | 15 Watt DC/DC converter, industrial, 4:1 input, cost efficient design, encapsulated, 1" x 1" metal package |
| THL 15-2415WI | 15 W | 9-36 VDC | 24 VDC (21.6-26.4 VDC) | 15 Watt DC/DC converter, industrial, 4:1 input, cost efficient design, encapsulated, 1" x 1" metal package |
| THL 15-2422WI | 15 W | 9-36 VDC | ±12 VDC | 15 Watt DC/DC converter, industrial, 4:1 input, cost efficient design, encapsulated, 1" x 1" metal package |
| THL 15-2423WI | 15 W | 9-36 VDC | ±15 VDC | 15 Watt DC/DC converter, industrial, 4:1 input, cost efficient design, encapsulated, 1" x 1" metal package |
| THL 15-4810WI | 11.2 W | 18-75 VDC | 3.3 VDC (2.97-3.63 VDC) | 15 Watt DC/DC converter, industrial, 4:1 input, cost efficient design, encapsulated, 1" x 1" metal package |
| THL 15-4811WI | 15 W | 18-75 VDC | 5 VDC (4.5-5.5 VDC) | 15 Watt DC/DC converter, industrial, 4:1 input, cost efficient design, encapsulated, 1" x 1" metal package |
| THL 15-4812WI | 15 W | 18-75 VDC | 12 VDC (10.8-13.2 VDC) | 15 Watt DC/DC converter, industrial, 4:1 input, cost efficient design, encapsulated, 1" x 1" metal package |
| THL 15-4813WI | 15 W | 18-75 VDC | 15 VDC (13.5-16.5 VDC) | 15 Watt DC/DC converter, industrial, 4:1 input, cost efficient design, encapsulated, 1" x 1" metal package |
| THL 15-4815WI | 15 W | 18-75 VDC | 24 VDC (21.6-26.4 VDC) | 15 Watt DC/DC converter, industrial, 4:1 input, cost efficient design, encapsulated, 1" x 1" metal package |
| THL 15-4822WI | 15 W | 18-75 VDC | ±12 VDC | 15 Watt DC/DC converter, industrial, 4:1 input, cost efficient design, encapsulated, 1" x 1" metal package |
| THL 15-4823WI | 15 W | 18-75 VDC | ±15 VDC | 15 Watt DC/DC converter, industrial, 4:1 input, cost efficient design, encapsulated, 1" x 1" metal package |
