Источники питания AC/DC Traco Power серия TPP 180A-M
- от 20 645 руб.
- Производитель: Traco Power
- Модель: TPP 180A-M
| Модель | Цена | На складе, шт | Количество |
| TPP 180-112A-M | 20 645 руб. | по запросу |
|
| TPP 180-115A-M | 20 645 руб. | по запросу |
|
| TPP 180-124A-M | 20 645 руб. | по запросу |
|
| TPP 180-136A-M | 20 645 руб. | по запросу |
|
| TPP 180-148A-M | 20 645 руб. | по запросу |
|
| TPP 180-153A-M | 20 645 руб. | по запросу |
|

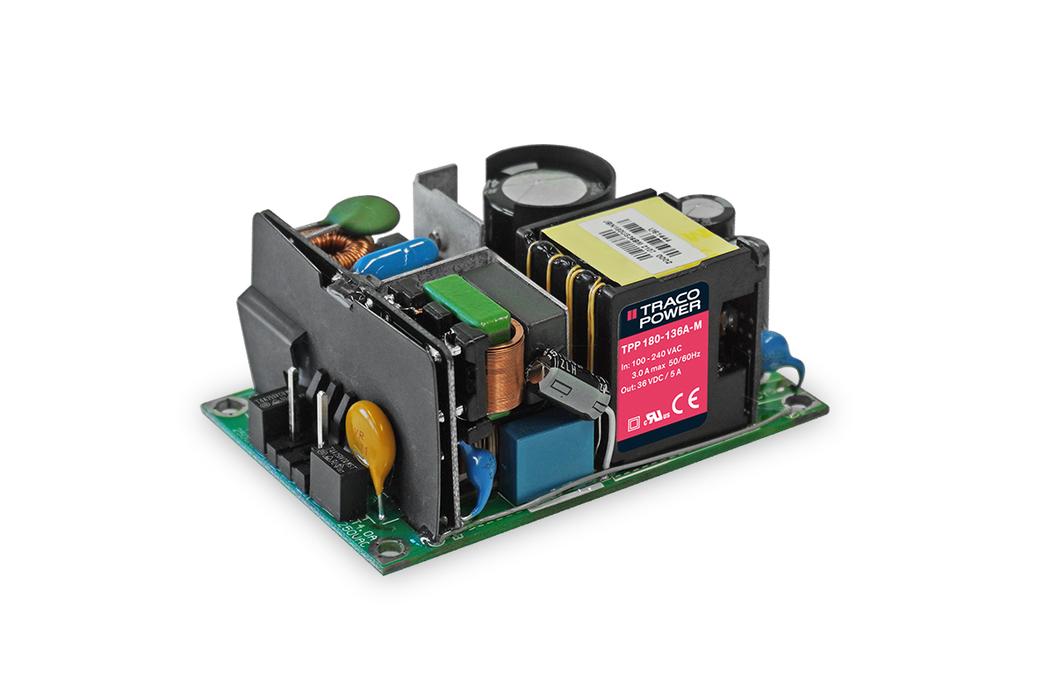

The TPP 180A-M is series of open frame AC/DC power supplies coming in an open frame package. They feature a reinforced double I/O isolation (4000 VAC) system according to latest medical safety standards (60601-1 3rd edition, 2 x MOPP). The leakage current is below 100 μA and makes the units suitable for BF (body floating) applications. The excellent efficiency of up to 94% allows a high power-density and compact design (3” x 2”). The operating temperature range is –40°C to +85°C with derating above 50°C. In natural convection operation these power supplies deliver 150 Watt going up to 180 Watt with forced air cooling. Additionally, they can deliver 220 Watt peak power for 5s. The EMC characteristic is dedicated for applications in industrial and medical fields. High reliability is provided by using high quality components and an excellent thermal management making the TPP 180A-M an ideal solution for industrial and medical devices and for demanding safety and space critical applications.
Особенности
- High power-density: 180 Watt in 3”x2” package (open frame)
- I/O isolation 4000 VAC rated for 250 VAC working voltage
- Certification according to IEC/EN/ES 60601-1 3rd edition for 2 x MOPP
- Risk management process according to ISO 14971 incl. risk management file
- Acceptance criteria for electronic assemblies acc. to IPC-A-610 Level 3
- Peak power operation up to 220 Watt for 5s
- Operating temperature –40°C to 85°C
- Active power factor correction >0.9
- Operating up to 5000m altitude
- 5-year product warranty
Модельный ряд
| Модель | Мощность | Вход | Выход | Краткое описание |
|---|---|---|---|---|
| TPP 180-112A-M | 180 W | 85-264 VAC / 120-370 VDC | 12 VDC (11-13 VDC) | 180 Watt AC/DC power supply, medical, 85-264 VAC input, reinforced 4000 VAC isolation, open frame, 3" x 2" |
| TPP 180-115A-M | 180 W | 85-264 VAC / 120-370 VDC | 15 VDC (13.8-16.2 VDC) | 180 Watt AC/DC power supply, medical, 85-264 VAC input, reinforced 4000 VAC isolation, open frame, 3" x 2" |
| on demand | 180 W | 85-264 VAC / 120-370 VDC | 18 VDC (16.6-19.4 VDC) | 180 Watt AC/DC power supply, medical, 85-264 VAC input, reinforced 4000 VAC isolation, open frame, 3" x 2" |
| TPP 180-124A-M | 180 W | 85-264 VAC / 120-370 VDC | 24 VDC (22.1-25.9 VDC) | 180 Watt AC/DC power supply, medical, 85-264 VAC input, reinforced 4000 VAC isolation, open frame, 3" x 2" |
| on demand | 180 W | 85-264 VAC / 120-370 VDC | 28 VDC (25.8-30.2 VDC) | 180 Watt AC/DC power supply, medical, 85-264 VAC input, reinforced 4000 VAC isolation, open frame, 3" x 2" |
| TPP 180-136A-M | 180 W | 85-264 VAC / 120-370 VDC | 36 VDC (33.1-38.9 VDC) | 180 Watt AC/DC power supply, medical, 85-264 VAC input, reinforced 4000 VAC isolation, open frame, 3" x 2" |
| TPP 180-148A-M | 180 W | 85-264 VAC / 120-370 VDC | 48 VDC (44.2-51.8 VDC) | 180 Watt AC/DC power supply, medical, 85-264 VAC input, reinforced 4000 VAC isolation, open frame, 3" x 2" |
| TPP 180-153A-M | 180 W | 85-264 VAC / 120-370 VDC | 53 VDC (48.8-57.2 VDC) | 180 Watt AC/DC power supply, medical, 85-264 VAC input, reinforced 4000 VAC isolation, open frame, 3" x 2" |
