Источники питания на DIN-рейку Traco Power серия TSP-BCMU
- от 52 291 руб.
- Производитель: Traco Power
- Модель: TSP-BCMU
| Модель | Цена | На складе, шт | Количество |
| TSP-BCMU360 | 52 291 руб. | по запросу |
|

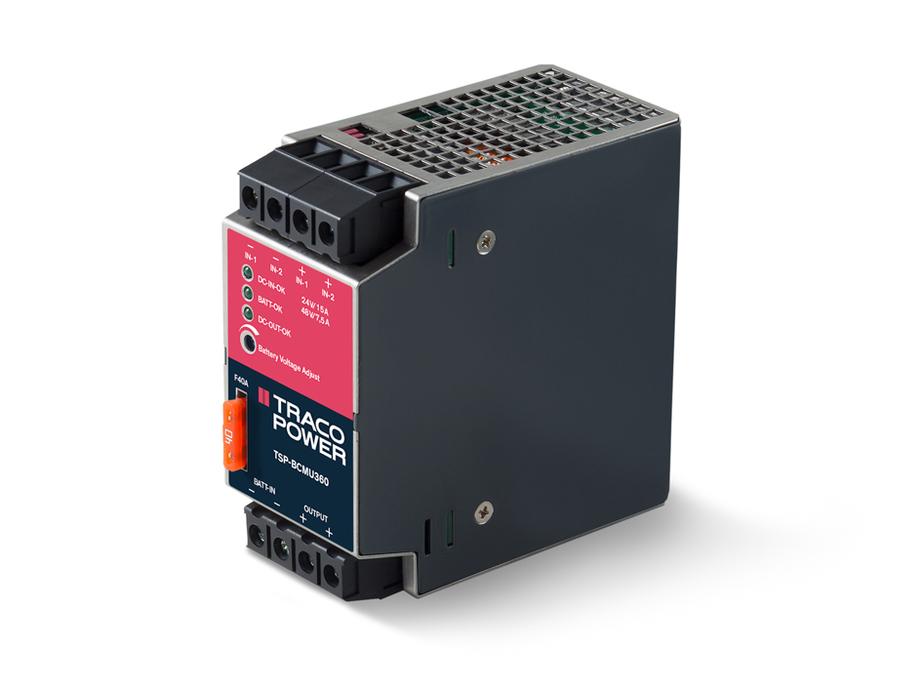

This module provides a professional battery management system to charge and monitor an external 12V lead-acid battery. Together with a power supply of the TSP series or any other stabilized 24 VDC or 48 VDC power supply a perfect DC-UPS system can be configured. The connected battery will be charged and held in charged mode by the power supply. In the event of a mains power failure the battery will supply the output power until the battery is discharged. To avoid overcharging the battery, an external temperature sensor adjusts the battery voltage automatically to the required end of charge voltage. This can extend the battery life. The battery is protected against deep discharge. Mains power and battery status are monitored regularly and failures indicated by corresponding LED’s and alarm outputs. The module also provides an external On/Off input to switch-off both, power supply and battery.
Особенности
- Battery controller module (BCM)
- Redundant inputs for two independant sources
- Alarm signals
- Input for 12 V battery
- Battery protection system
- Remote On/Off
Модельный ряд
| Модель | Мощность | Вход | Выход | Краткое описание |
|---|---|---|---|---|
| TSP-BCMU360 | 360 W | 24-56 VDC | 24/48 VDC | Universal battery controller module for uninterruptable 24 VDC and 48 VDC bus voltage., metal case, DIN-Rail |
