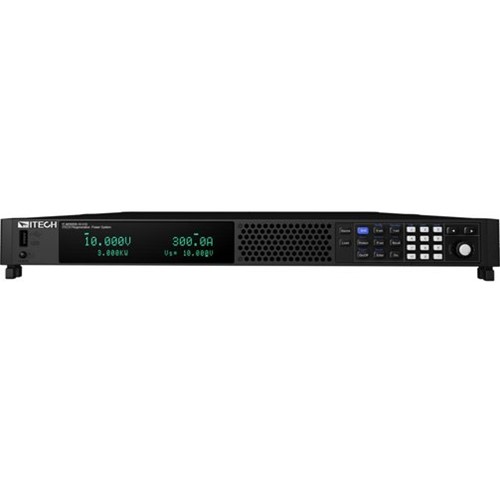

Система рекуперации энергии Itech серии IT-M3900B

  • от 431 919 руб.
  • Производитель: ITECH
  • Модель: IT-M3900B

0 отзывов / Написать отзыв

Модель Цена На складе, шт Количество
IT-M3901B-10-170 431 919 руб. по запросу
IT-M3902B-300-20 544 477 руб. по запросу
IT-M3902B-32-80 490 718 руб. по запросу
IT-M3902B-500-12 500 798 руб. по запросу
IT-M3902B-80-40 447 123 руб. по запросу
IT-M3902B-800-8 517 093 руб. по запросу
IT-M3903B-10-340 708 945 руб. по запросу
IT-M3904B-300-40 842 586 руб. по запросу
IT-M3904B-32-160 719 361 руб. по запросу
IT-M3904B-500-24 751 532 руб. по запросу
IT-M3904B-80-80 711 045 руб. по запросу
IT-M3904B-800-16 799 999 руб. по запросу
IT-M3905B-10-510 882 905 руб. по запросу
IT-M3906B-1500-12 1 190 507 руб. по запросу
IT-M3906B-300-60 944 476 руб. по запросу
IT-M3906B-32-240 910 961 руб. по запросу
IT-M3906B-500-36 963 124 руб. по запросу
IT-M3906B-80-120 899 201 руб. по запросу
IT-M3906B-800-24 1 017 470 руб. по запросу
IT-M3910B-10-1020 1 284 165 руб. по запросу
IT-M3912B-1500-24 1 716 587 руб. по запросу
IT-M3912B-300-120 1 324 484 руб. по запросу
IT-M3912B-32-480 1 366 063 руб. по запросу
IT-M3912B-500-72 1 388 322 руб. по запросу
IT-M3912B-80-240 1 272 069 руб. по запросу
IT-M3912B-800-48 1 466 609 руб. по запросу

Краткое описание серии IT-M3900B

IT-M3900B regenerative power system feature two-in-one, which could use as a bidirectional DC power supply, also act as an independent regenerative load. One-button-switch between source and load mode, a unique and decisive feature for the user groups that works in different applications such as battery, PV energy storage, electric vehicle, Green energy and some ATE fields.

Модельный ряд IT-M3900B

Модель Напряжение Ток Мощность Разрешение Точность Интерфейс Размер
IT-M3901B-10-170 10 В -120~170A -1200~1700 Вт 0.001V/0.01A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/Digital I/O port, optional GPIB/Analog&RS232 1 U
IT-M3903B-10-340 10 В -240~340A -2400~3400 Вт 0.001V/0.01A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/Digital I/O port, optional GPIB/Analog&RS232 1 U
IT-M3905B-10-510 10 В -360~510A -3600~5100 Вт 0.001V/0.1A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/Digital I/O port, optional GPIB/Analog&RS232 1 U
IT-M3910B-10-1020 10 В -720~1020A -7200~10200 Вт 0.001V/0.1A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/Digital I/O port, optional GPIB/Analog&RS232 2 U
IT-M3902B-32-80 32 В ±80A ±2k Вт 0.001V/0.01A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/Digital I/O port, optional GPIB/Analog&RS232 1 U
IT-M3904B-32-160 32 В ±160A ±4k Вт 0.001V/0.01A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/Digital I/O port, optional GPIB/Analog&RS232 1 U
IT-M3906B-32-240 32 В ±240A ±6k Вт 0.001V/0.01A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/Digital I/O port, optional GPIB/Analog&RS232 1 U
IT-M3912B-32-480 32 В ±480A ±12k Вт 0.001V/0.01A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/Digital I/O port, optional GPIB/Analog&RS232 2 U
IT-M3902B-80-40 80 В ±40A ±2k Вт 0.001V/0.01A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/Digital I/O port, optional GPIB/Analog&RS232 1 U
IT-M3904B-80-80 80 В ±80A ±4k Вт 0.001V/0.01A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/Digital I/O port, optional GPIB/Analog&RS232 1 U
IT-M3906B-80-120 80 В ±120A ±6k Вт 0.001V/0.01A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/Digital I/O port, optional GPIB/Analog&RS232 1 U
IT-M3912B-80-240 80 В ±240A ±12k Вт 0.001V/0.01A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/Digital I/O port, optional GPIB/Analog&RS232 2 U
IT-M3902B-300-20 300 В ±20A ±2k Вт 0.01V/0.001A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/Digital I/O port, optional GPIB/Analog&RS232 1 U
IT-M3904B-300-40 300 В ±40A ±4k Вт 0.01V/0.001A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/Digital I/O port, optional GPIB/Analog&RS232 1 U
IT-M3906B-300-60 300 В ±60A ±6k Вт 0.01V/0.001A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/Digital I/O port, optional GPIB/Analog&RS232 1 U
IT-M3912B-300-120 300 В ±120A ±12k Вт 0.01V/0.001A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/Digital I/O port, optional GPIB/Analog&RS232 2 U
IT-M3902B-500-12 500 В ±12A ±2k Вт 0.01V/0.001A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/Digital I/O port, optional GPIB/Analog&RS232 1 U
IT-M3904B-500-24 500 В ±24A ±4k Вт 0.01V/0.001A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/Digital I/O port, optional GPIB/Analog&RS232 1 U
IT-M3906B-500-36 500 В ±36A ±6k Вт 0.01V/0.001A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/Digital I/O port, optional GPIB/Analog&RS232 1 U
IT-M3912B-500-72 500 В ±72A ±12k Вт 0.01V/0.001A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/Digital I/O port, optional GPIB/Analog&RS232 2 U
IT-M3902B-800-8 800 В ±8A ±2k Вт 0.01V/0.001A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/Digital I/O port, optional GPIB/Analog&RS232 1 U
IT-M3904B-800-16 800 В ±16A ±4k Вт 0.01V/0.001A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/Digital I/O port, optional GPIB/Analog&RS232 1 U
IT-M3906B-800-24 800 В ±24A ±6k Вт 0.01V/0.001A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/Digital I/O port, optional GPIB/Analog&RS232 1 U
IT-M3912B-800-48 800 В ±48A ±12k Вт 0.01V/0.001A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/Digital I/O port, optional GPIB/Analog&RS232 2 U
IT-M3906B-1500-12 1500 В ±12A ±6k Вт 0.01V/0.001A ≤0.03% + 0.03%FS / ≤0.1% + 0.1%FS USB/CAN/LAN/Digital I/O port, optional GPIB/Analog&RS232 1 U

Особенности серии IT-M3900B

♦ 2 in 1 unit - a bidirectional power supply and a regenerative load
♦ One button switch between source and load on front panel
♦ Compact design, 1U@6kW, 2U@12kW
♦ Voltage range: 10~1500V
♦ Current range: -720A~1020A
♦ Power range: ±12kW
♦ Bidirectional energy flow between the DUT and the grid, current seamless switching
♦ Master/slave parallel connection with parallel technology - keep good performance while power extension*1
♦ Efficient power regeneration -  reduce cost of electricity and cooling
♦ CC/CV priority
♦ Adjustable output impedance
♦ Battery charge and discharge test

♦ Battery simulation

♦ Partial pre-compliant with LV123, LV148, DIN40839,ISO-16750-2, SAEJ1113-11,LV124 and ISO21848 automotive testing standards
♦ Support solar panel I-V curves simulation*2
♦ Slope of voltage, current and power is settable
♦ Simulation of dynamic driving conditions, up to 10 million points
♦ 8 operation modes under Source mode：CC/CV/CW/CR/CC+CV/CV+CR/CR+CC/CC+CV+CW+CR
Multiple protection:
♦ OVP / ±OCP / ±OPP / OTP /voltage transient drop protection/anti-islanding/power grid detection/pre-charge
♦ Built-in USB/CAN/LAN/digital IO interfaces, Optional GPIB/Analog&RS232

*1. If parallel connection >6 units, pls. contact ITECH for details
*2. Not available for 10V models

Преимущества серии IT-M3900B

One button switch, bidirectional power & Regenerative load

Different from other bidirectional power supplies, IT-M3900B series is a regenerative power system

which combines two devices into a 1U unit. It is both a bidirectional DC power supply and also a regenerative DC electronic load. You can switch between Source and Load with one button on the front panel.IT-M3900B not only saves space and equipment purchasing cost for you, but also enables you to connect DUT easily. It can switch seamlessly between source and sink mode fast and continuously, which avoids voltage or current overshoot effectively. IT-M3900B can be well applied to battery test, cell packaging equipment test, battery protection board test, etc.


Battery simulation function

IT-M3900B unique bidirectional design and variable output impedence makes it easy for the users  to set voltage/capacity/internal resistance/SOC quickly to define battery matrix quickly from the front panel, to simulate the charge/discharge characteristics of battery and assist with other tests. ITECH provides optional BSS2000 battery simulation software, then users can self-define the battery curve by setting common parameters, also can set battery initial capacity to verify the DUT characteristics under different battery
status. Meanwhile, BSS2000 supports importing matlab battery matrix or CSV. file with battery charging and discharging curve, so as to simulate real battery charge and discharge characteristics.
